Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | Wuhan, China |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | negotiable |
| Packaging Details: | Normal exporting cartons |
| Delivery Time: | 5-8 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Usage: | Industrial | Temperature Range: | E: 0-1200 |
|---|---|---|---|
| Application: | Muffle Furnace Use | Thermocouple: | K Type |
| Temperature: | 0-1200.C | Power Supply: | 100~240VAC |
| High Light: | resistance temperature detecto,temperature sensor rtd pt100 |
||

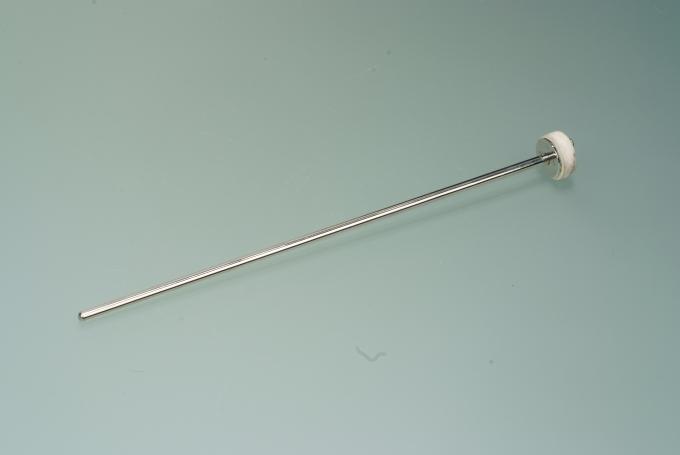

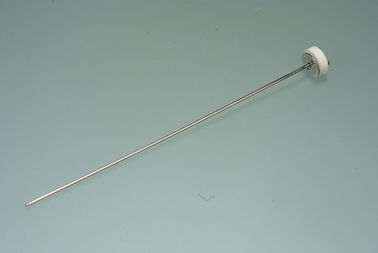

K type thermocouple for lab muffle furnace use
| Type | Temperature Range | Tolerance |
| B | 0~1800.C | +/-1.5.C |
| S | 0~1600.C | +/-1.5.C |
| K | 0~1400.C | +/-2.5.C |
| E | o~600.C | +/-2.5.C |
| Pt100 | ~200~500.C | +/-0.3.C |
| Cu50 | ~200~500.C | +/-0.3.C |
| Product Features | |
| ♦ Easy to install, several optional testing range ♦ Dual use for gas and liquid, used to various material compatible with 316L stainless steel ♦ Quick response, high accuracy ♦ Good longterm stability, low energy consumption,smart |
|
| Applicable Scope | |
| ♦ Pipe and ventilation systems ♦ Hydraulic and pneumatic systems ♦ Cooling and heating systems ♦ Water supply and water heating systems ♦ Air-conditioning systems ♦ Automation system temperature mensuration and control |
| Standard Range | |
| Testing range(°C):-50~0;-50~50;0~50;0~80;0~100;0~120;0~150;0~200; | |
| Installation Mode: Inserting | |
| Depth of Inserting (mm): 50mm (typically, beyond the screw threads); custom-made available. | |
| Probe Size: Φ3,Φ4,Φ5,Φ6,Φ8 | |
| Technical Index | |
| Sensor | Pt100 Pt1000 |
| Resistance | 1×Pt100 1tPT1000 |
| Signal line specification | 2wire or 3wire 2wire or 3wire |
| Accuracy | Class A Class B Class 1/3B |
| Pressure Resistance | Typically 40bar (Max300bar) |
| Longterm Stability (1 Year) | ±0.1%FS |
| Response Time | T=50°C 2.3s;T=90°C 5.4s |
| Ambient Temperature | -40~+85°C |
| Storage Temperature | -40~+125°C |
| Housing | 316L stainless steel |
| Wetted Parts | 316L stainless steel |
| Environmental Protection | IP65 |
