Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
Place of Origin: | China |
Brand Name: | GME |
Certification: | CE |
Minimum Order Quantity: | 50pcs |
---|---|
Price: | Negotiable |
Packaging Details: | cartons, pallet |
Delivery Time: | 7~10 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000 pcs per Month |
Power Source: | Electric | Dimension: | Customized |
---|---|---|---|
Power: | 20W-2000w | Sheath Material: | Stainless Steel Or Nickel |
Cross Section: | 3.5x3.5,3.0x3.0,3.3x3.3 | Style: | Straight Or Coil |
Lead Wire: | 1000-3000mm | Coiling Scheme: | Tangential, Radial Exits, Axial |
Material: | Seamless Tainless Steel | Application: | Manifolds Hot Runner Injection |
Resistance Wire: | Ni Cr80-20 | Voltage: | 110V, 12V~600V |
Highlight: | electric resistance heater,coil heater with thermocouple |

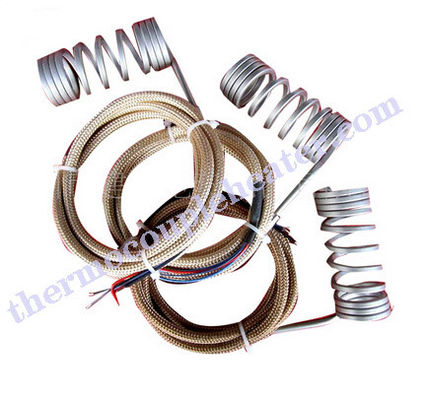

100W heating element Hot runner heater with stainless steel304 heating products
Description:
1) Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology .
2) The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reus
1)Cross sections optional of Enail coil heater:
4*4mm,3.5*3.5mm,3.3*3.3mm,3*3mm,4.2*2.7mm,4.2*2.5mm,4.2*2.2mm,4*2mm,∅4.5mm, ∅4.2mm, ∅4mm, ∅3.8mm,ø3.45mm, ø3.2mm, and ø3.0mm
2)The range of the length of heated length: 100mm----4000mm
3) Maximum power density: 9w/cm²
Product Name
|
Coil Heater Heating Element
|
Material
|
304SS or 316L
|
Color
|
CR20NI80
|
ID available:
|
7mm to 120mm
|
Coil length available
|
6mm to 400mm
|
Range of working voltage
|
12V to 440V
|
Power range
|
5W to 2500W
|
TC optional
|
type J and K
|
Application:
1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
