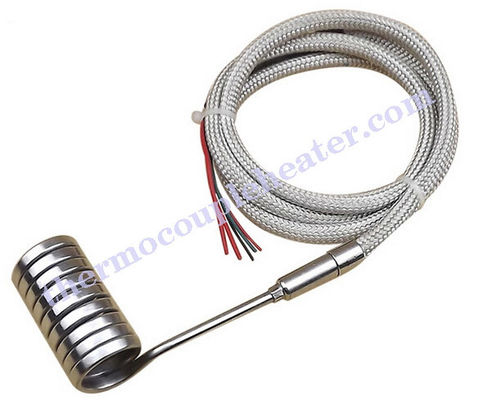

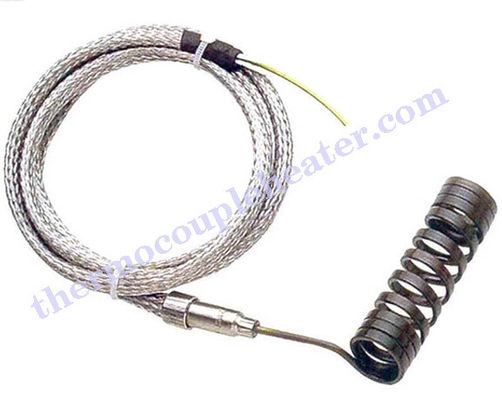

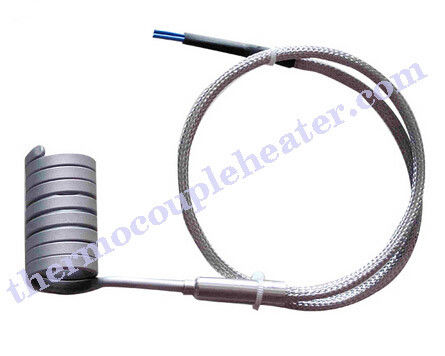

Nail Temperature Controller Coil Heaters Dark Grey For Hot Runner System
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
Detailed Product Description
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 110V-380V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 3.5x3.5,3.0x3.0,3.3x3.3 | Style: | Straight Or Coil |
| Lead Wire: | 1000-3000mm | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | SS304,SS321,SS316 | Application: | Manifolds Hot Runner Injection |
| Color: | Silver, Dark Grey | ||
| Highlight: | electric resistance heater,coil heater with thermocouple |
||
Mould Hot Runner Coil Heater With Nail Temperature Controller for hot runner system
Description:
1) Wuhan Global Metal Engineering Co., LTD. which is an enterprise based on the actual needs of clients ,is always insisting on the purpose as the "QUALITY FIRST, INTEGRITY-BASED, COMMON DEVELOPMENT" since its inception.
2) GME focuses on R & D, production, sales and service of customized products in the electric heat and industrial automation instrumentation industry .
3) GME products have been exported to Europe, The Americans ,, Asia, etc. More than 180 countries.
Specification:
Outer sheath material:High quality 304SS or 316L
Inside magnesium oxide insulation material:OTC(U.S.A) high purity Mgo tube
Heating element:high durance and high temperature NiCr2080 heating element from Germany
Max. working temperature:700℃
High voltage stability test:Less than 0.5mA leak under 1000V for 30 seconds
Cross sections optional:
4*4mm,3.5*3.5mm,3.3*3.3mm,3*3mm,4.2*2.7mm,4.2*2.5mm,4.2*2.2mm,4*2mm,∅4.5mm, ∅4.2mm, ∅4mm, ∅3.8mm,ø3.45mm, ø3.2mm, and ø3.0mm
The range of the length of heated length: 100mm----4000mm
Maximum power density: 9w/cm²
Cold zone length: 50mm standard, and other sizes available
Dimensions of cold zone adaptor: 8x30mm and 6.35x25mm optional
Standard leads: 1000mm black wire over 300℃
| Design features | |
| Sheath temperature up to 800oC | Higher watt densities |
| Build in Type "J" (or) "K" Thermocouple | Rugged & Durable Construction |
| Available as per customer's specifications | |
| Applications |
|
1. Moulds & Dies 2. Nozzle heating 3. Sprue Bushing |
| Physical size construction |
|
2.3*4.3mm, 2.2*4.7mm, 2.0*4.0mm, 3.0*3.0mm, 3.2*3.2mm, 3.6*3.6mm, 4.0*6.0mm, 1.5*2.1mm, 2.7*4.5mm, Φ 1.8mm, 3.3mm, 3.7mm, 4.2mm |
Application:
1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds.
