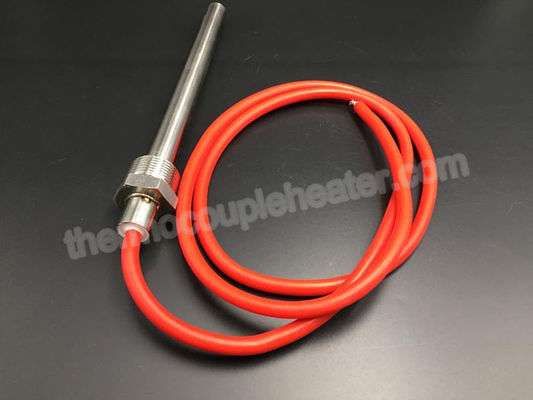

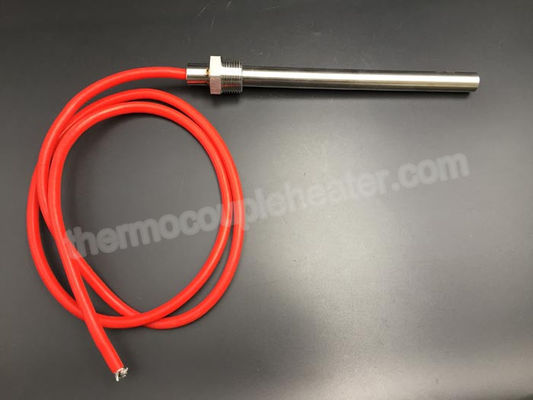

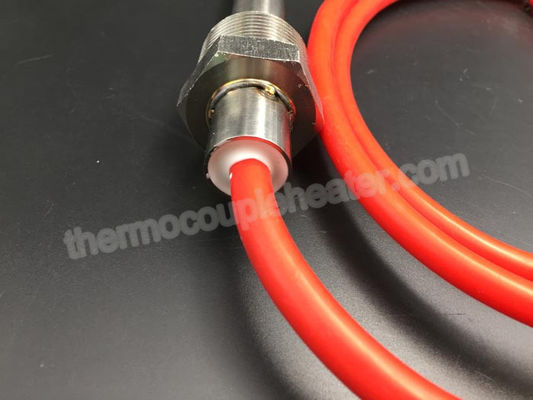

High Density Cartridge Heaters Immersion Water Proof With Silicone Cables

High Density Cartridge Heaters Immersion Water Proof With Silicone Cables

    • High Density Cartridge Heaters Immersion Water Proof With Silicone Cables
    • High Density Cartridge Heaters Immersion Water Proof With Silicone Cables
    • High Density Cartridge Heaters Immersion Water Proof With Silicone Cables
  • High Density Cartridge Heaters Immersion Water Proof With Silicone Cables

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL/CSA

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: USD 1-100 FOB Shanghai/pc
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15Wroking Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs/Month
    Contact Now
    Detailed Product Description
    Product Name: High Density Immersion Water Proof Cartridge Heater With Silicone Cables Thermocouple: No
    Tube Material: High Quality 316L Resistance Wire: Ni80Cr20
    Insulation Material: 99.99% High Purity Magnesium Tolerance Of Length: +/-1.5%
    Wattage: 0.5-15KW
    High Light:

    cartridge immersion heater

    ,

    cartridge heater with thermocouple

    High Density Immersion Water Proof Cartridge Heater With Silicone Cables





    Description:



    Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter. And it is a piece of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used to heat in plastic injection moulds, dies, platens ….





    Technical Details



    1. Heating element: high durance and high temperature NiCr2080 heating elements from Germany

    2. Inside magnesium oxide insulation material: 99.99% high purity magnesium oxide

    3. Sheath material : Stainless Steel 316

    4. Max working temperature: 400℃

    5. High voltage stability test:

    6. Less than 0.5mA leak under 1000V for 30 seconds

    7. OD range: 3mm-32mm

    8. The range of the Total Length: 25mm----2500mm

    9. Maximum power density: 40w/cm²

    10. Unheated zone: 10mm at lead end and about 5mm at bottom

    11. Lead options:

    A: Solid Nickel Pin: wire 300℃ or 500℃

    B: Swaged in wire: 500℃ wire coming from inside





    Feature:


    Superior Life Expectancy
    Highly Non-corrosive

    Specially selected High Purity
    Magnesium Oxide

    Available with in built Thermocouple
    Standard Sizes Available



    Applications:



    Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in below area,



    Hot Runner Bushings
    Marking & Sealing Machinery
    Packaging Industry

    Medical & Laboratory Apparatus
    Shoe Making Industry
    Die and platents
