Name: | Pressed In Brass Coil Heater With Thermocouple J For Hot Runner System | Application: | Hot Runner |
---|---|---|---|
Material: | Brass | Lead Wire Length: | 1000mm Or Customize |
Warranty: | 1 Year | Insulated Material: | Comressed MgO |
Moistureproof: | IP65 | Cross Section: | 1.5mm |
Thermocouple: | Type J | Tube Length: | 78 Mm |
Form: | Straight Or Coiled | Type: | Tangential, Radial Exits, Axial |
Wire: | Braided Copper Tinned Conductor Etc | Wire Insulation: | Etc. |
Protection Sleeves: | Fiberglass, Silicon, Braided Metal Screen Etc | ||
Highlight: | electric resistance heater,coil heater with thermocouple |

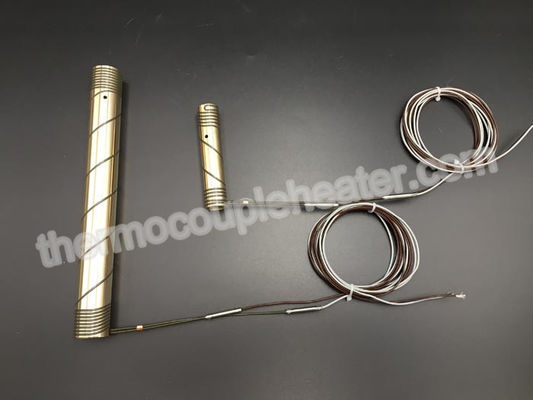

Pressed in Brass Coil Heater With Thermocouple J For Hot Runner System
1. Introduction
Pressed in brass coil heater can be made of various cross section heating filaments, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields. Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.
2. Characteristics
1) Very good performance of the heating uniformity in the heating area.
2) High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.
3) The moisture-proof is IP65
3. Parameter
Spring coil heater (H series) | 3.0x3.0 3.3x3.3 4.0x2.0 4.2x2.2 4.5x2.7 |
Φ3.0 | Φ4.0 | Φ5.0 | 3.5x3.5 4.0x4.0 |
5.0x5.0 |
Voltage | 220V,230V,240V | |||||
Power tolerance 115W-200W | +/-10% | |||||
Power tolerance 201W-2000W | +5%-10% | |||||
Out jacket length | 30mm~280mm | |||||
Diameter of the inner sleeve/wrapped diameter | 10mm~42mm | |||||
Unheating length | 45mm | |||||
Max power density | 9W/cm² | |||||
Heating Length tolerance | +/-0.05mm | |||||
Unheating length tolerance | +/-2.5% | |||||
Tolerance ID d ≤20mm | Without inner sleeve:-0.15mm With inner sleeve:0.05mm~0.10mm |
|||||
Tolerance ID d 20mm~30mm | Without inner sleeve:-0.20mm With inner sleeve:0.05mm~0.10mm |
|||||
Tolerance ID d ≥30mm | Without inner sleeve:-0.25mm With inner sleeve:0.05mm~0.10mm |
|||||
Tolerance cross section | +/-0.15mm | +/-0.20mm | ||||
Thermocouple | K,J,E | None | ||||
Material | 304,321,316 | |||||
Maximum working temperature | 650℃ | |||||
Die electrical strength | 800V | 1000V |
4. Application
hot runner system
plastic industry
packaging machinery
medical equipment
casting process
other electric heating industry
