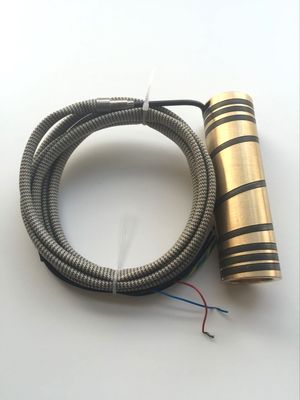

4.0 x2.0mm Hot Runner Brass Coil Heaters With J Type Thermocouple

4.0 x2.0mm Hot Runner Brass Coil Heaters With J Type Thermocouple

4.0 x2.0mm  Hot Runner Brass Coil Heaters With J Type Thermocouple

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE&ISO

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Export Carton Box
Delivery Time: 7-15 working days
Payment Terms: Western Union, T/T, Paypal, , L/C, D/P
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Leadwire: 1000 MM Sleeve: Fiberglass Silicon
Thermocouple: J Type
High Light:

electric resistance heater


Electric Coil Heaters

4.0x2.0mm coiled Hot Runner Brass Coil Heaters With jType Thermocouple



1. Coil Heater Brief Introduction


Cable heaters could be coiled, to form coil heaters that are ideal whenever a large amount of heat is required in a confined space. Coil heaters have many applications but are mostly utilized as powerful heating cells inside hot runner nozzles in plastic injection molding.


Coil heaters are high performance mini tubular heaters that have small rectangular, square or round cross sections that are flexible and can acquire different shapes and configurations.


Coil and cable heaters can accommodate "J" type or "K" type thermocouple sensors that could be placed internally at the tip or the middle of a heater. They can be made as well to have profiled or distributed wattage configuration.


The sheath material of standard cable heaters is stainless 304; their heating core is coiled or straight solid Nickel Chrome wire. Cable heaters can transmit up to 35 W/in2 heating capacity and can attain up to 15000F surface temperature.


2. Coil Heater Characteristics

  • Designed for even heat profile
  • Advanced Thermal Engineering
  • Available with in built Thermocouple
  • Precision fit on Hot Runner Nozzles
  • Highly Non-corrosive
  • Choice of Terminal Exits
  • Standard sizes available with various cross section
  • Various Watt Density option available
