Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K Type Needle Sharp | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Usage: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | Wire Length: | Custom-made |
| Highlight: | temperature sensor rtd,resistance temperature detecto |
||

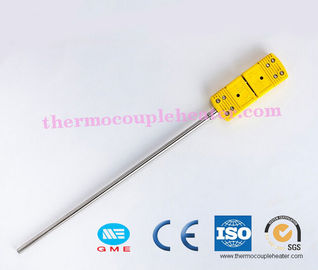

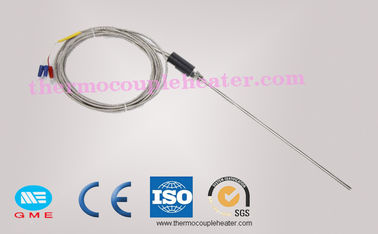

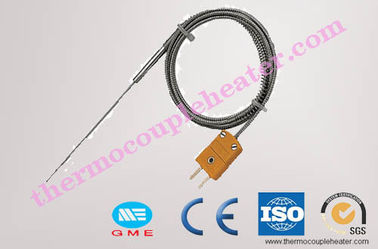

K/J type Needle Shape Pin Sharp Probe Thermocouple with mini/standard Plug
Description:
1) K type thermocouple) also known as iron - Kang Tong is also a thermocouple, cheap cheap metal thermocouple. Its cathode (JP) on behalf of the chemical composition of pure iron anode (JN) for copper nickel alloy, often vaguely called Kang Tong,
2) The Kang tong, the name of its chemical composition: 55% copper and 45% the nickel and a small but important manganese, cobalt, iron and other elements, although it is called Kang Tong, but unlike Kang Tong and Kang Tong copper - nickel - chromium - Kang Tong, EN and TN can not be used to replace.
3) Thermocouple good degree of linearity, thermoelectric large, high sensitivity, stability and uniformity is good, the advantages of cheap, widely used by users. The type J thermocouple can be used in vacuum, oxidation, reduction and inert atmosphere, but positive iron oxidation at high temperatures is fast, so use temperature is limited, can not no direct protection at high temperatures for curing atmosphere
Specification:
1. Grade: SUS304
2. Size: 3*150mm probe
3. Wire length:1000mm
4. Certification: ISO9001:2008
Cable construction
-conductor:original thermocouple alloy material, is made up of solid wires or strand wires.
-Insulation layer
there are 4 kinds of material for insulation:
fiberglass (ambient temperature range 0-300℃)
PVC (ambient temperature range 0-105℃)
(ambient temperature range 0-350℃)
silicone (ambient temperature range 0-180℃)
Jacket layer material:fiberglass, PVC, , silicone
rubber. outer shape could be round or flat.
-Galvanized layer
braided galvanize material:stainless steel, tinned brass.
|
Product Name
|
K type probe thermocouple
|
|
Material
|
stainless steel
|
|
Color
|
nickel white
|
|
Standard
|
GB
|
|
Grade
|
I class
|
|
Max.temp
|
800C
|
|
Connection
|
mini plug
|
|
Used
|
Temperature measure
|
Sheath Styles:
Stainless Steel
Junction Types, Single and Dual:
J, K, T, E
Grounded or Ungrounded
Sheath Diameters:
0.125”, 0.188”, 0.250”
Leadwire/Cable Options
Application:
Widely used in aviation, nuclear, petroleum, chemical, metallurgical, mechanical, electrical and other industrial sectors and scientific fields.
