K type thermocouple probe Thermocouple RTD / cable sensor customized
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
Detailed Product Description
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | SS304/SS316 |
| Style: | K, J, S | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | Connection: | Thread |
| Sample: | Available | ||
| Highlight: | temperature sensor rtd,temperature sensor rtd pt100 |
||

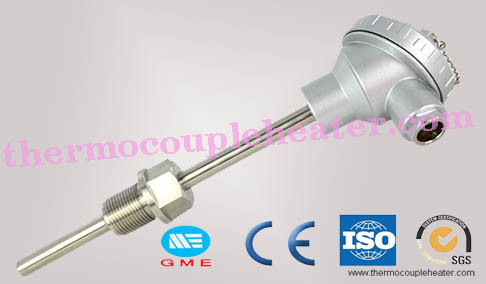

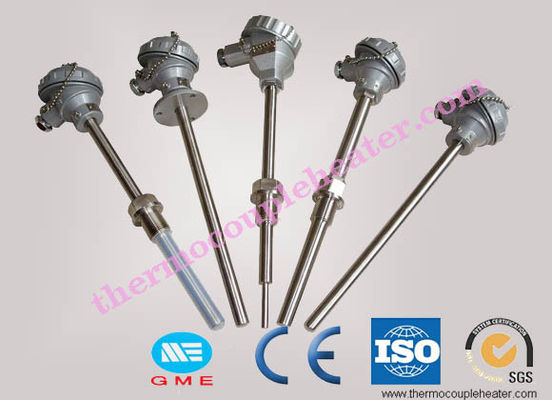

K type thermocouple probe customized / custom-made thermocouple / cable sensor
Description:
1) GME's thermocouples are mainly customized strictly according to customer's requirements. To meet various standards, the production process is carefully inspected by our engineer and technician.
2) The assembly thermocouple has the ability of good corrosion resisance, high working temperature, stable performace and long operation life. The calibration of it can be K/E/J/B/S etc. With different calibration, its working temperature range also changes. Due to the high demand of this kind thermocouple, our technican will cooperate with you and help you make a better choice.
3) Armored thermocouple temperature sensors are widley applied to aviation, nuclear energy, petrochemical, metallurgy, machinery, electric power industries and technical area.
Specification:
♦ High accuracy and thermal response fast
♦ Various installation options meet customer requirements
♦ K type armored thermocouple range:0-1000℃
♦ Armored thermocouple range:(-200~+1300℃,could be made -270~+2800℃ for special conditions)
1.type: k
2. Diameter: 16mm
3. Probe Length: 300mm
4. Temperature range: -20-1100C
5. Enter: k
6. Enter: 4-20mA / 0-10V
7. module: transmission temperature
8. Wire: If necessary, please contact customer service
| Conductor | Model | Type | Admissible error class | ||
| Class I | Class II | Class P | |||
| Ni-Cr / Ni-Si | WRKK | K | ±1.5℃ or ±0.4%|t| | ±2.5℃ or ±0.75%|t| | / |
| Ni-Cr-Si / Ni-Cr-Mg | WRKN | N | |||
| Ni-Cr / Ni-Cu | WRKE | E | |||
| Fe / Cu-Ni | WRKJ | J | |||
| Cu / Cu-Ni | WRKT | T | ±0.5℃ or ±0.4%|t| | ±1.0℃ or ±0.75%|t| | / |
| Pt-Rh10 / Pt | WRKS | S | / | / | ±3℃ or ±0.5%|t| |
| Pt-Rh13 / Pt | WRKR | R | |||
| Pt-Rh30 / Pt6 | WRKB | B | / | / |
±4℃ or ±0.5%|t| |
Features:
1. Easy assembly and convenient for replacement;
2. Spring thermal element with good shock-proof performance;
3. Wide measuring range;
4. High mechanical strength, good pressure-resistant performance.
