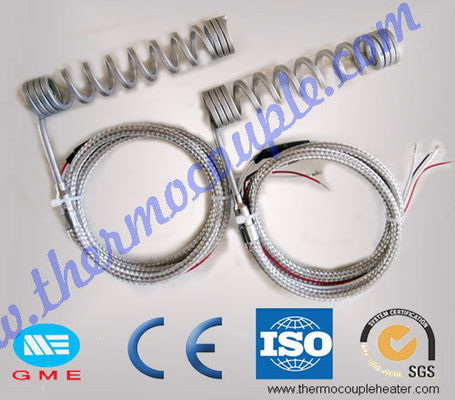

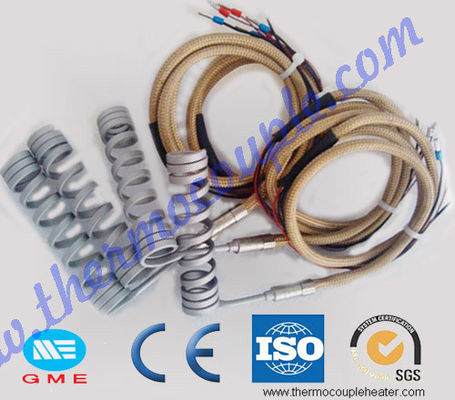

Hot Coil Spring Heater For Mold Heating 2.2x4.2 For Plastic Injection Mold Nozzles

Large Image : Hot Coil Spring Heater For Mold Heating 2.2x4.2 For Plastic Injection Mold Nozzles

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Power:	20W-2000w	Sheath Material:	Stainless Steel Or Nickel
Cross Section:	3.5x3.5,3.0x3.0,3.3x3.3	Style:	Straight Or Coil
Lead Wire:	1000-3000mm	Coiling Scheme:	Tangential, Radial Exits, Axial
Material:	Seamless Tainless Steel	Application:	Manifolds Hot Runner Injection
Resistance Wire:	Ni Cr80-20	Weight:	50g--500g
Highlight:	electric resistance heater , Electric Coil Heaters

Hot coil Spring heater for mold heating 2.2x4.2 for plastic injection mold nozzles

Description:

1) Coil heater is one kind of tubular electric heating elements. These components are mainly used in aerospace, petrochemical, rubber and plastics industries, and the like, it can be used to heat still or flowing air, water, oil,nitrate, alkali and other kinds of liquid.

2) Coil heater can also be used to melt light metal or to heat metal moulds. It has advantages such as simple structure, long heat lifetime, high thermal efficiency, reliable and safe operation and so on.

Specification:

1. High temperatures resistance 2. Unheated straight section

3. Precise temperature control 4. Fast response

5. Choice of lead orientation 6. Choice of lead protection

7. Longer heat lifetime 8. Round, square and rectangular cable

9. High watt densities 10. Rugged, durable construction

11. Available with built-in thermocouple

12. Made to customers' requirements

voltage	power	inner diameter	length	cross section	thermocouple
230v	350w	19mm	40mm	2.2x4.2	J/K/*
230v	350w	19mm	40mm	3.0x3.0	J/K/*
230v	1200w	50mm	100mm	3.5x3.5	J/K/*
230v	2000w	50mm	260mm	4.2x8.5	J/K/*
230V	600W	20mm	100mm	4.0x4.0	J/K/*

Material:	SUS304,321
Brand name:	Coil Heater
Model	Coil Heater
Max Temperature Operating	760ºC
Internal thermocouple	type J,K or E;

Hot Coil Spring Heater For Mold Heating 2.2x4.2 For Plastic Injection Mold Nozzles 0

Application:

1. Injection moulding machine nozzle 2. Hot runner nozzles & Bushings

3. Packaging machineries 4. Hot runner injection moulds

5. Injection & Blow moulding machine nozzles

6. Hot runner manifolds
