K Type Armored Furnace Thermocouple RTD in Oven , Furnace , Boiler Temperature Measurment

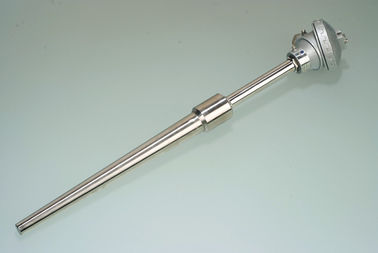

Large Image : K Type Armored Furnace Thermocouple RTD in Oven , Furnace , Boiler Temperature Measurment

Product Details:

Place of Origin:	Wuhan, China
Certification:	CE, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Packaging Details:	Normal exporting cartons
Delivery Time:	5-8 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Usage:	Industrial	Temperature Range:	-50 To 1300degC
Application 2:	Environment Protection	Theory:	Temperature Sensor
Accuracy:	Class I, Class II	Cable:	PVC, PTFE, Silicon Gel Cable
Highlight:	temperature sensor rtd , resistance temperature detecto

K Type Armored Furnace Thermocouple in Oven, Furnace, Boiler Temperature Measurement

Features

.Temperature Range: -200°C to 1800°C..
.Type:K type, 2 wire
.Probe: Stainless Steel material

.Head: Water-proof, explosion-proof
.Cable: Normal, PVC, PTFE,

.high temperature -proof

Application

Pipeline inspection, petrochemical, industrial equipment, food machinery, high-temperature furnace and boiler, special alloy equipment, metallurgy, hydropower, thermal power, laboratorial platform, glass

Specification

Item Name	K Type Armored Furnace Thermocouple in Oven, Furnace, Boiler Temperature Measurement
Application Fields Type	Pipeline inspection, petrochemical, industrial equipment, food machinery, high-temperature furnace and boiler, special alloy equipment, metallurgy, hydropower, thermal power, laboratorial platform, glass
Element	Simple Element thermocouple, 2 wire
Accuracy	Class I, Class II
Measured Range	K ( -50 ~ 1300°C ), S ( -50 ~ 1700°C ), T ( -200 ~ 350°C ) ,E ( 0 ~ 800°C ), J (0 ~ 1000°C), B (300 ~ 1800°C), N (0 ~ 1300°C)
Probe Material &Size	Material : 304SS or customized; Size: 5mm, 6mm, 8mm, 10mm; 12mm or customized
Probe Install Angle	Customized
Process Connection	None, angle to fix and install in bolier or furnace, or pipe etc
Head	Water-proof, explosion-proof, splash-proof
Cable	None, PVC; PTFE; High temperature proof cable, silica gel cable, Mica cable etc

K Type Armored Furnace Thermocouple RTD in Oven , Furnace , Boiler Temperature Measurment 0

K Type Armored Furnace Thermocouple RTD in Oven , Furnace , Boiler Temperature Measurment 1
