Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | Wuhan, China |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | Normal exporting cartons |
| Delivery Time: | 5-8 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Temperature Range: | -200°C~850°C | Certificate: | CSA,CE, ISO9001 |
|---|---|---|---|
| Inspection: | Laboratory | Application: | Gas Cooker Heater,gas Stove |
| Applicable: | Gas NG/LPG/propanetane | Environmental: | Environmental Copper |
| Highlight: | resistance temperature detecto,temperature sensor rtd pt100 |
||
1.Thermocouples for gas stove/oven/fireplace
2.Used with magnet vlave together
3.Many different styles
4.Can becustom-made

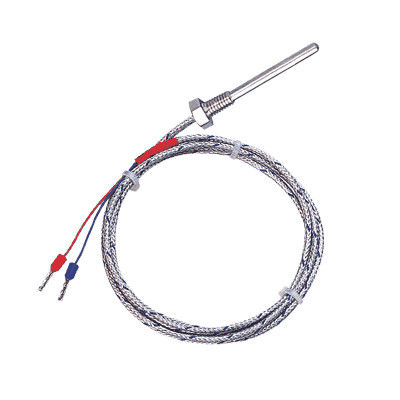

Gas cooker thermocouple
Thermocouples for gas stove/oven/fireplace thermocouple :
1) Thermocouple specified for gas oven,gas heater, outdoor heaters, volumetric gas water heaters,
gas cooker heater,gas stove,gas oven,gas,fireplace,bbq garill.
2) Applicable gas families: NG/LPG/propane/butane
3) No-load potential: ≥30mv(according to request)
4) Inner resistance: 5-50 ±3mΩ
5) Material: EP-- NiGr ; EN--CuNi
6) Thermocouple temperature:-200°C~850°C
Technical data
| Thermocouples for gas stove/oven/fireplace thermocouple : Technical parameters | |
| Applicable gas species | Natgas, LPG, artificial coal gas etc |
| Tolerance | According GB 1840-2000 |
| Open valve current | ≤5s |
| Closing valve current | ≤35s |
| Inner resistance | ±3 mΩ |
| 650°CNo-load potential | ≥20mV |
| Plugin insertion force | ≥35N |
| Cooling characteric | ≤15mV |
| Axial tension 50N, sustain 1 min, no loose, no cut | |
| The length according the client’s request | |
plastic bag and cartons
Thermocouples for gas stove/oven/fireplace thermocouple :
Usually carton packaging, or PVC bag with a label.
