Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 380V, 600w | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 2.2*4.2mm | Style: | Straight Or Coil |
| Lead Wire: | Copper, , Fiberglass Silicon | Heating Coil ID: | 8mm-40mm |
| Thermocouple: | With Or Without, K Or J Type | Application: | Manifolds Hot Runner Injection |
| Highlight: | electric resistance heater,Electric Coil Heaters |
||

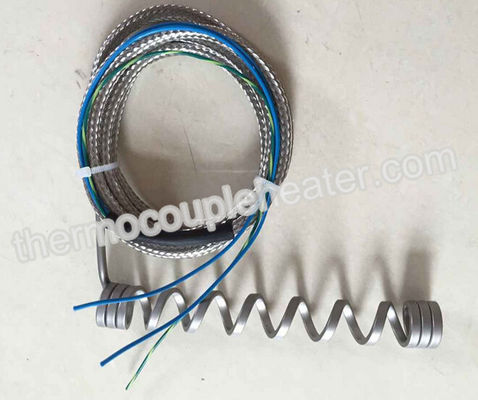

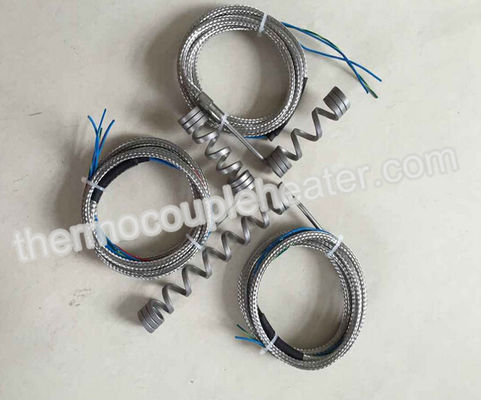

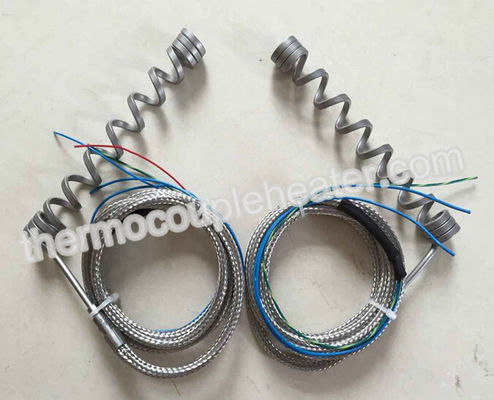

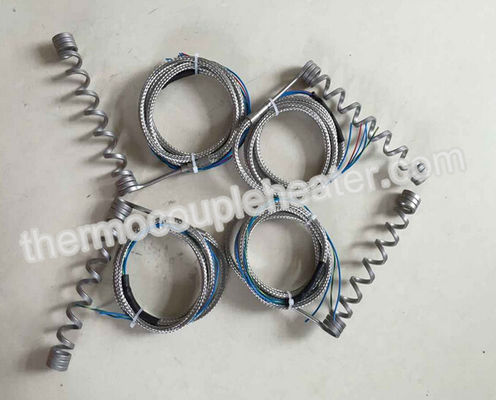

Hot Runner Coil Heater with Brass Nozzle in metal mesh lead wire For Plastic Molding
Description:
1.Hot runner coil heaters also know as cable heaters can be formed to a variety of shapes as required by its many application.
2.Frequenty though,coil heaters are configured as samll diameter,high performance nozzle heaters that are fully annealed.
3.Spring hot runner coil heates are use on injection molding machine nozzles and sprue bushings supplying bushings supplying 360 degree of heat with optional distributed wattage available.
4.Hot runner coil heaters are also used as cartridge heaters where irregular size bores are found.A straight,round cable heater can snake through a seal in packaging equipment installations.
.
Specification:
1.The A class products of our company has the function of water proof
2.Standard voltage 230 V, We can make the voltage as you need
3.The normal cable length is 1000 mm ,also we can make the length as you need
4.The leading wire type use fiberglass silicone copper wire ,PTFE wrapped copper wire ,and others should be customized
5.Material: SS304,Mgo ,Heating coil
| Heating section | 2.2x4.2mm 3x3mm 3.4x3.4mm 3.5x3.5m 4x4mm |
| Heating coil ID | 8mm~40mm |
| Heating ring height | 10mm~200mm |
| Voltage | 15V~380V |
| Wattages | 200W~3000W |
| Build-in thermocouple power | With or without J/K thermocouple |
| Lead wire |
500/1000/1200/1500/2000mm |
Application:
1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
8. Molds $ Dies
9. Manifolds
