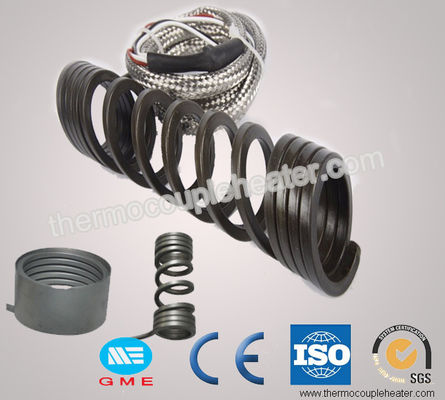

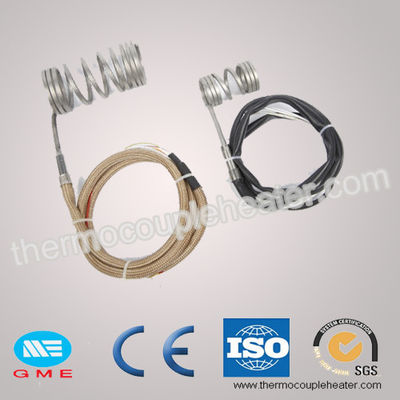

High Quality Industrial Spring Hot Runner coil micro heater with one year warranty
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
Detailed Product Description
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 380V, 600w | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 3.5x3.5,3.0x3.0,3.3x3.3 | Style: | Straight Or Coil |
| Lead Wire: | 1000-3000mm | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | Seamless Tainless Steel | Application: | Manifolds Hot Runner Injection |
| Resistance Wire: | Ni Cr80-20 | ||
| Highlight: | electric resistance heater,Electric Coil Heaters |
||
Injection moulding machine Spring enail hot runner coil heater with thermocouple J
Description:
1) Our Hot Runner Coil Heater is annealed to acquire malleability for bending into any shape. Hot Runner Bushes are produced with hot runner heaters of different cross sections with inner brass and outer stainless steel cover.
2) Hot Runner Coil Heater have advantages such as fast heating and cooling,even heating,high temperature resistance,anti-oxidation,good extensibility,good insulation and long usage life. Hot Runner Coil Heater are widely used in hot-runner molds,blow molding,extrusion and hot nozzles.
Specification:
- Tube diameter: Φ3mm-Φ30mm
- Tube Material:SS304;SS316,SS321,NICOLOY800 etc
- Insulation Material:High-purity Mgo
- Reisistance wire element:Ni-Cr or FeCr
- Lead Connection Option: Crimped or Swaged leads
- Lead and type of connection leads, 10" Fiberglass Standard(Wire options:,silicone high temperature frberglass)
| Heat intensity | Not exceeding 30Wcm2 (advisable) |
| Power | Depends on the dimension |
| Escape of current (when cold) | <=0.1mA a 242 v. |
| Insulation (when cold) | 5 Min Ohmios 500 Watts minimum |
| Dielectric strength | 1500v. 1/seg |
| Working temperature | 750ºG max. |
| Tolerance of length | +/-1.5% |
| Tolerance of diameter | -0.01 a -0.06 m/m |
| Tolerance of cut of connexion | +/-15 mlm |
| Power tolerance (w) | 5 % - 10 % |
| Cold areas |
Depends on length and diameter 5-25mm |
Application:
---Hot runner system
---Plastic Industry
---Packaging Machinery
---Medical Equipment
---Casting Process
---Other electricc heating industry
