Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | Wuhan, China |
| Brand Name: | GME |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | Normal exporting cartons |
| Delivery Time: | 5-8 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Dimension(L*W*H): | Customized | Power: | Customized |
|---|---|---|---|
| Certification: | CE | Power Source: | Electric |
| Voltage: | Customized | Warranty: | One Year Against Manufacturing |
| Highlight: | resistance temperature detecto,temperature sensor rtd pt100 |
||

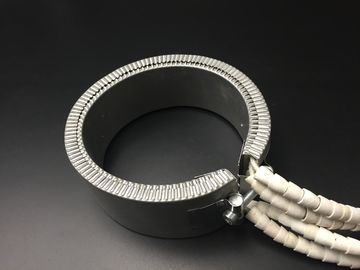

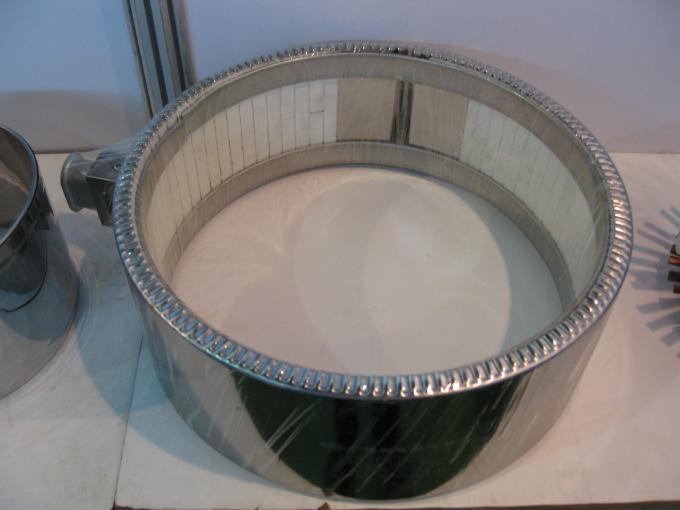

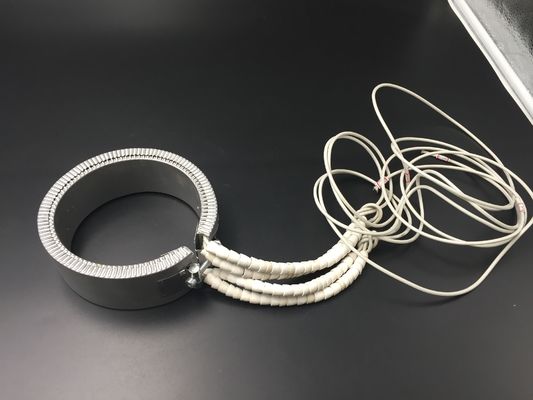

Ceramic Band Heaters were developed to meet industrial requirements for high temperature long lasting heaters. They are ideally suited to comply with today's new resins, which calls for ever-increasing process temperatures.
Ceramic Band Heaters design consist of a helically wound resistance coil made from 80/20 nichrome wire, evenly stretched and precisely strung through a specially designed ceramic insulating bricks forming a flexible heating mat. The ceramic heating mat along with ceramic fiber insulation is placed on a stainless steel housing made with serrated edges providing maximum flexibility for easy installation.
Applications:
Features:
Specifications:
| Resistance | + 10% -5% | Overall Thickness | 15 mm |
| Wattage | +5% -10% | Minimum Dia. | 38 mm |
| Maximum Watt Density | 8 watts / sq. cm. | Minimum Width | 25 mm |
| Voltage | 220V AC to 480V AC | Width - Normal | multiple of 15 + 6mm |
| Maximum Temp. | 800° C | Std. gap between edges | 5 to 10 mm |
