High Quality Thermocouple RTD Pin Type Thermocouple with One Year Warranty
 |
Product Details:
| Place of Origin: | Wuhan, China |
| Brand Name: | GME |
| Certification: | CE, RoHS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | Normal exporting cartons |
| Delivery Time: | 5-8 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
Detailed Product Description
| Usage: | Industrial | Temperature Range: | 0-1800°C |
|---|---|---|---|
| Calibrations: | K, J, T And E Calibrations | Junctions Of Thermocouple K Type: | Grounded, Ungrounded And Exposed Junctions |
| Grounded, Ungrounded And Exposed Junctions: | Straight, 45° Bend Or 90° Bend | Accuracy: | +/-1°C |
| Highlight: | resistance temperature detecto,temperature sensor rtd pt100 |
||
Product Description

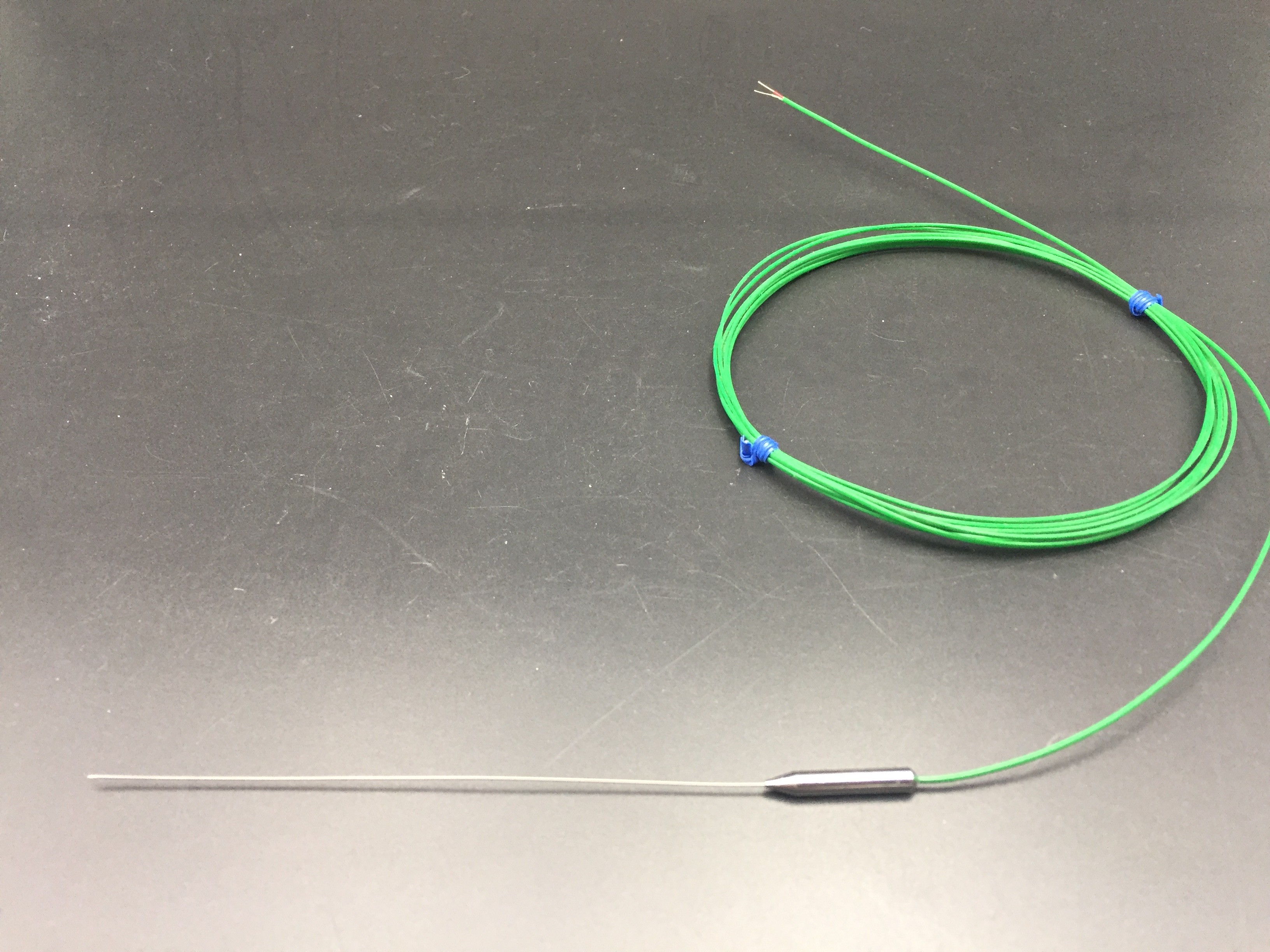

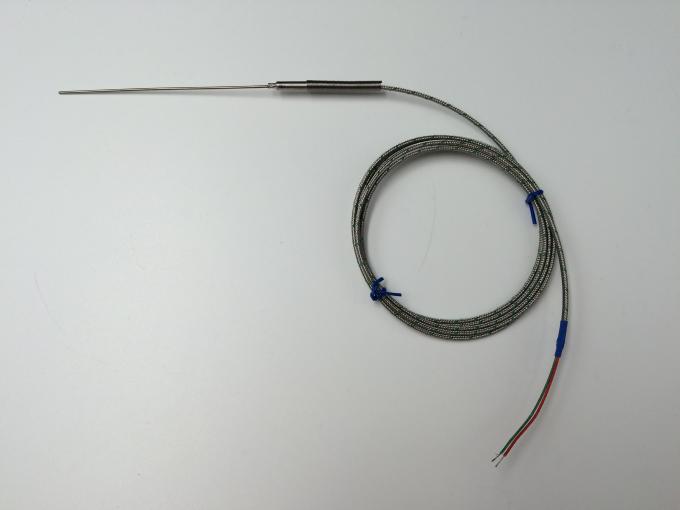

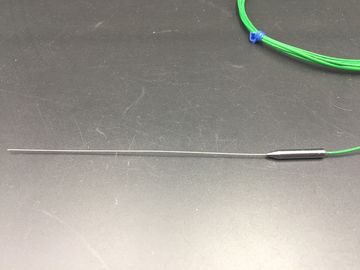

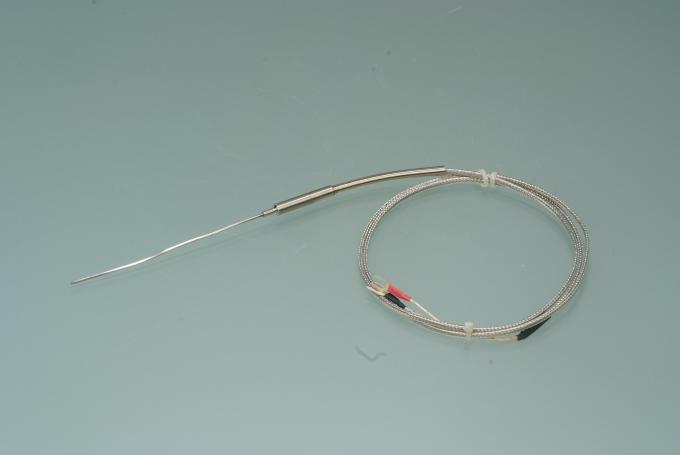

Description of Pin Type Thermocouple:
Thermocouple consists of two conductors of different materials (usually metal alloys) that produce a voltage in the vicinity of the point where the two conductors are in contact. The voltage produced is dependent on, but not necessarily proportional to, the difference of temperature of the junction to other parts of those conductors. Thermocouples are a widely used type of temperature sensor for measurement and control and can also be used to convert a temperature gradient into electricity.
Features of Pin Type Thermocouple:
• Customized diameter, sheath lengths and lead length
• Stainless steel braided or hose protection
• K, J, T and E calibrations
• Grounded, ungrounded and exposed junctions
• Flat and drill point
• Epoxy sealed cold ends
• Flexible extensions
• Miner coated and stainless steel sheaths
• Straight, 45° bend or 90° bend
• 12 mm and 15 mm locking bayonet caps
Performance Capabilities of Pin Type Thermocouple:
Maximum Temperature Tolerance of thermocouple with glass fiber insulation: 600 cent degree for non-stop working.
Maximum Temperature Tolerance of thermocouple with mineral fiber insulation: 1500 cent degree non-stop working.
Temperature test precision: +/-1 cent degree
Applications of Pin Type Thermocouple:
• Food processing equipment
• De-icing
• Plating baths
• Industrial processing
• Medical equipment
• Pipe tracing control
• Industrial heat treating
• Packaging equipment
• Liquid temperature measurement
• Refrigerator temperature control
• Oven temperature control
