| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 12V/24V/110V/220V/230V... | Sheath Material: | Stainless Steel Or Nickel |
| Minimum ID: | 25mm | Style: | Straight Or Coil |
| Lead Wire: | Copper, , Fiberglass Silicon | Thermocouple Type: | J Or K Type |
| Terminal: | Axial, Radial & Tangential | ||
| Highlight: | electric resistance heater,Electric Coil Heaters |
||

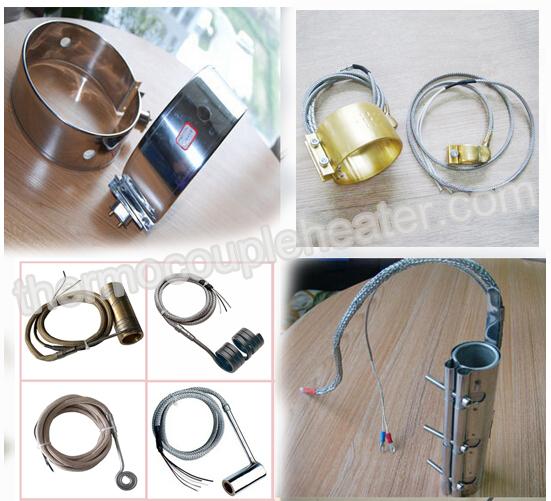

customizable electric band element electric band heater brass nozzle heater
Description:
1) Nozzle & Band heaters are are used in plastic processing industry for keeping the nozzles of injection molding machines hot. Nozzle heaters are manufactured from high quality mica sheet or ceramic, and have Nickel Chrome resistance.
2) Nozzle heaters are covered by metal sheathing & can be rolled to the required shape. Band heaters operate efficiently when the sheath temperatures are kept below 280 degree centigrade. If this temperature is maintained, the life of the band heaters gets long.
Specification:
1,Brass tubular sheath (available in stainless steel for corrosive materia Copper Nozzle Band Heater ls such as PVC).
2, Power standard density: max brass 5 W/cm²
3,Tear-resistant connection of power cable.
4,dia is available from 25mm to 150mm,and height is available from 25mm to 70mm.
5,Thermocouple K or J is available
| Voltage | 12~440V |
| Wattage | Max. 5w/cm2 |
| Diameter | 25mm -150mm |
| Height | 25mm-70mm |
| Electric Heating Wire | NiCr2080 |
| Insulation | Mica |
| Sheath | Brass tubular |
| Operation Temperature | 0~800°C |
| Thermal protection |
Build in Type "J" (or) "K" Thermocouple |
Application:
Plastic processing Machinery
Injection & Blow Molding
Extruders
All Plastic & Rubber Processing Machinery
Many other Applications. (Medical, Lab-equipments…etc)
Dies
Cylinders and drums
Plastic film extruders
Injection and blow Moulding machine
Holding Tanks
All Plastic & Rubber Processing Machinery
