Place of Origin: | China |
Brand Name: | GME |
Certification: | CE |
Minimum Order Quantity: | 50pcs |
---|---|
Packaging Details: | cartons, pallet |
Delivery Time: | 7~10 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000 pcs per Month |
Power Source: | Electric | Dimension: | Customized |
---|---|---|---|
Voltage: | 110-240V / 50-60Hz | Warranty: | On Year |
Power: | 100-600W | Style: | Straight Or Coil |
Heating Wire Material:: | Cr20Ni80 | Coiling Scheme: | Tangential, Radial Exits, Axial |
Material: | Brass And Stainless Steel | Color: | Copper |
Highlight: | electric resistance heater,Electric Coil Heaters |

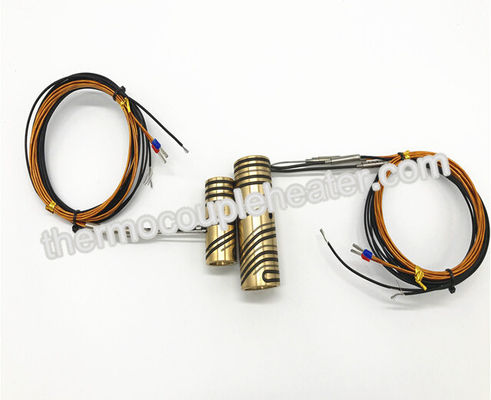

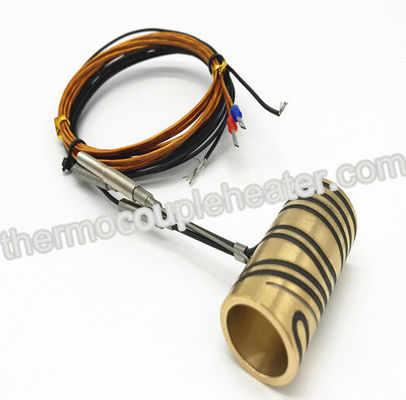

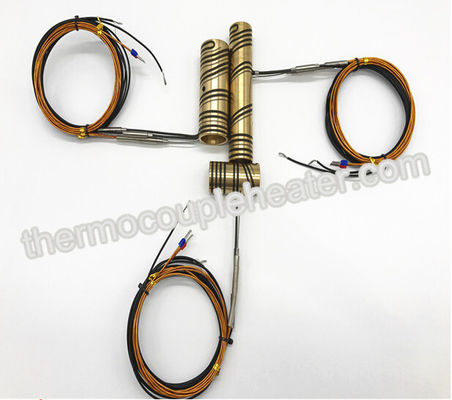

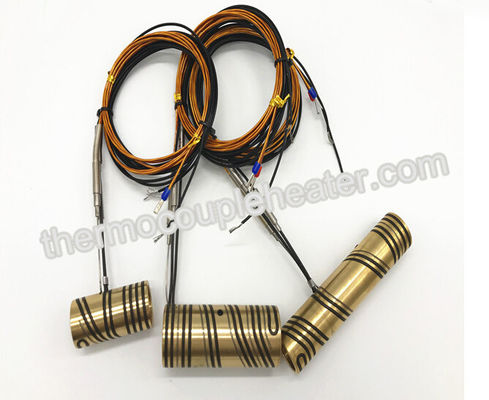

Hot runner electric Brass pipe type of heating coil element for hot runner system
Description:
1) Hot runner electric Brass pipe type of heating coil element is an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters,our production length in 400-3000mm is mainly used for hot runner mold ,as well as other precision heating system.
2) Spring heating ring external using high quality Ni-Crsteel tube,it has glass fiber package which can prevent leakage,the external use of high purity magnesium oxide, hightemperture resistance wire, and first-class manufacturing technology.These Heaters can be constructed with or without built in thermocouples.
3) Its high working temperature ,fast heating,uniform heating precision,long service life,can be automatically controlled area,high thermal conduction,while internal heating material damage,external can reuse.
Specification:
Features:
Voltage and power according to your requirement
Building in the thermocouple according to your requiremen
Name of product | Hot runner electric Brass pipe type of heating coil element |
Inner Diameter of coiled heater | 8-100mm(+0.05mm) |
Coil style Length | 15-400mm(+0.05mm) |
Staright style length | 400-3000mm(0.5mm) |
Cross-section | Round Dia:1.8mm;3.7mm;4.2mm |
Tube Material | SUS304/SUS316 |
Power | According to your requirement |
Insulation | High purity MGO |
Inner heating element | NiCr8020 |
Voltage | 12v;24v;110v;220v;240v;380v |
Wattage | 100-1500W(5w/cm2) +5% -10% |
Max temperature | 650℃ |
Built-in thermocouple | With or without J/K TC(Available) |
Service | ODM/OEM |
Delivery time | 3-5 days (10-500pcs) |
Application:
---Hot runner system
---Plastic Industry
---Packaging Machinery
---Medical Equipment
---Casting Process
---Other electricc heating industry
Payment Terms and Shipping:
We accept any payment: T/T, Paypal, Western Union
