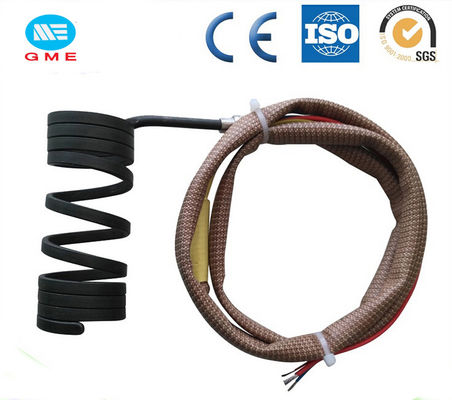

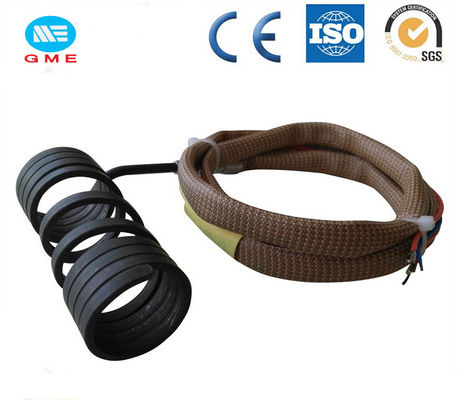

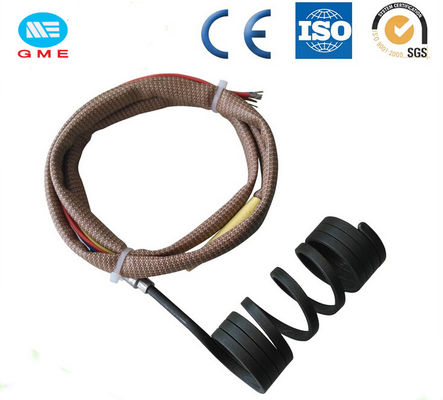

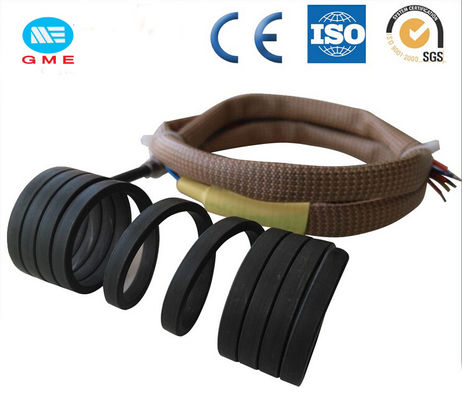

Customized Industry Heating Element Electrical Coil Hot Runner Heater For Moulds

Customized Industry Heating Element Electrical Coil Hot Runner Heater For Moulds

    • Customized Industry Heating Element Electrical Coil Hot Runner Heater For Moulds
    • Customized Industry Heating Element Electrical Coil Hot Runner Heater For Moulds
    • Customized Industry Heating Element Electrical Coil Hot Runner Heater For Moulds
    • Customized Industry Heating Element Electrical Coil Hot Runner Heater For Moulds
  • Customized Industry Heating Element Electrical Coil Hot Runner Heater For Moulds

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 380V, 600w Sheath Material: Stainless Steel Or Nickel
    Cross Section: 2.2*4.2mm Style: Straight Or Coil
    Lead Wire: Copper, , Fiberglass Silicon Coiling Scheme: Tangential, Radial Exits, Axial
    Material: Brass And Stainless Steel Application: Manifolds Hot Runner Injection
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters

    Customized Industry Heating Element Electrical Coil hot runner Heater for moulds



    Description:



    1) Hot runner heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape.



    2) Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.

    .

    Specification:

    • 1. Standard sizes available with various cross section
    • 2. Various Watt Density options available.
    • 3. Robust Design with Choice of Terminal Exits
    • 4. Available with built in Thermocouple
    • 5. Designed for even heat profile.
    • 6. Precision fit on Hot Runner Nozzles & Manifolds.
    • 7. Highly Non-corrosive.
    • 8. Maximum heat transfer due to more contact area.
    • 9. Advanced Thermal Engineering.
    Sheath Material MGO for Electrical Coil Heater
    Resistance Wire NI Cr 80-20
    Maximum Sheath Temperature 700o
    Die electric Strength 800 VA/C
    Insulation >5 M W
    Thermocouple J Type (Standard) or K Type
    Length Tolerance (Straight) 5%
    Wattage Tolerance 10% (5% Available Upon Request)
    Resistance Tolerance 10% (5% Available Upon Request)
    Unheated Length 35 mm Standard
    Dimension Tolerance

    Coil I.D. 0.1 to 0.2 mm





    Customized Industry Heating Element Electrical Coil Hot Runner Heater For Moulds





    Application:

    • 1. Injection moulding machine nozzle
    • 2. Hot Runner Nozzles & Bushings.
    • 3. Packaging machineries
    • 4. Hot runner Injection moulds.
    • 5. Injection & Blow Moulding Machine Nozzles.
    • 6. PET prefrom & Thin wall container Moulds
    • 7. Hot runner Manifolds.
