Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 12-480V | Warranty: | On Year |
| Cross Section: | 2.2*4.2mm | Style: | Straight Or Coil |
| Lead Wire: | Copper, , Fiberglass Silicon | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | Brass And Stainless Steel | Color: | Copper |
| High Light: | electric resistance heater,Electric Coil Heaters |
||

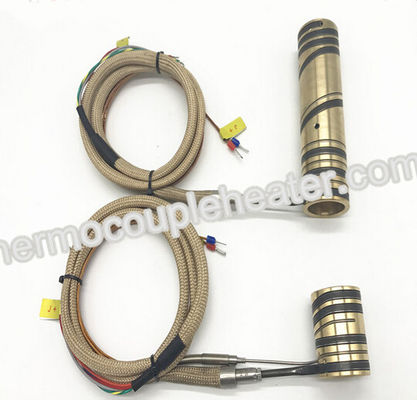

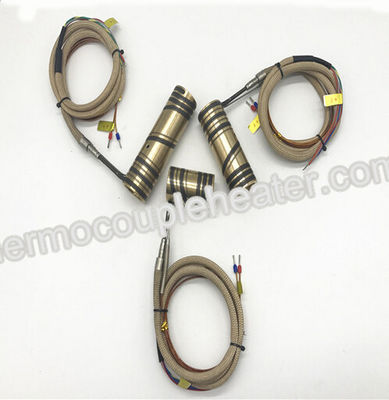

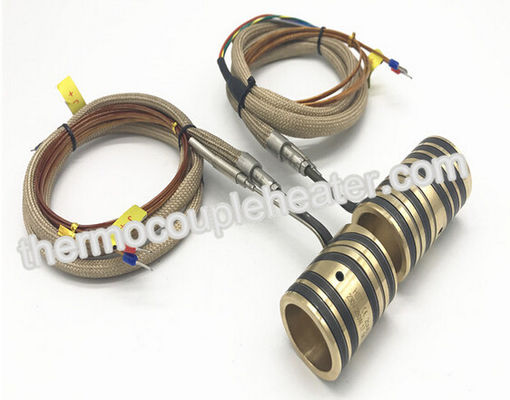

stainless steel 220v industry brass nozzle band heater with J type thermocouple
Description:
1) GME stainless steel 220V industrial brass nozzle band heater with J type thermocouple is an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters,our ptoduction length in 400-3000mm is mainly used for hot runner mold,as well as other precision heating system.
2) Spring heating ring external using high quality Ni-Cr steel tube,it has glass fiber package which can prevent leakage,the ecternal use of high purity magnesium oxide,high temperature resistance wire,and first-glass mahufacturing technology.These Heaters can be constructed with or without built in thermocouples.
3) Its high working temperature,fast heating,uniform heating precision,long service life,can be automatically controlled area,high thermal conduction, while internal heating material damage,external can reuse.
Specification:
GME's brass heaters has many advantages:
1) Specializes in manufacturing heater,thermocouple and heating equipment more than 15 years
2) Up to 200000 units turned out each month
3) Custom orders welcome
4) USA high purityMgo,Germany Nicr8020 alloy wire,Germany fiberglass protection
5) R&D team updates every month with 10 new items
| Name of product | 220V industrial brass nozzle brand heater with J type thermocouple |
| Inner Diameter of coil heater | 8-100mm(+0.05mm) |
| Coil style Length | 15-400mm(+0.05mm) |
| Cross-section |
Round Dia:1.8mm;3.7mm;4.2mm Square:3.2×3.2mm;3.6×3.6mm; Rectangle:1.5×2.1mm;2.2×4.2mm;2.3×4.3mm;4×6mm |
| Tube Material | SUS304/SUS316 |
| Power | According to your requirement |
| Inner heater element | NiCr8020 |
| Insulation | High purity MGO |
| Voltage | 110v;220v;240v; |
| Built-in thermocouple | With or Without J/K thermocouple |
| Wattage | 100-1500W(5w/cm2) +5% -10% |
| Service | ODM/OEM |
Application:
---Hot runner system
---Plastic Industry
---Packaging Machinery
---Medical Equipment
---Casting Process
---Other electric heating industry
Payment Terms and Shipping:
Packing: carton packing
Delivery Time: 15 days after receive down payment
