Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | Wuhan, China |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | Normal exporting cartons |
| Delivery Time: | 2 weeks after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 Piece/Pieces per month |
| Usage: | Industrial | Temperature Range: | -50-400 Degree C |
|---|---|---|---|
| Output: | 4-20mA ,0-10V Optional | Accuracy: | 0.5% |
| Pressue Connection: | M20, G1/2 Optional | Sensing Element: | J,K,E,PT100,CU50 Optional |
| High Light: | resistance temperature detecto,temperature sensor rtd pt100 |
||
Output:4-20mA / PT100
-50-400 Deg C measurement range
Gas & liquid temperature measurement
Explosion proof temperature sensor
Thermocouple , temperature sensor, explosion proof temperature transducer
Discription

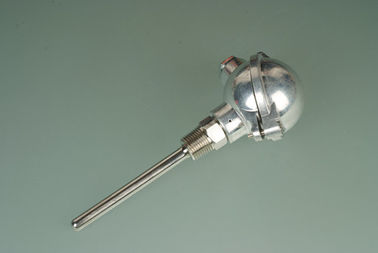

Card type thread mounted thermocouple/ resistance adopts thermocouple or resistance as the temperature measuring element,
It is normally matched with display, recording and regulating instrument, to measure the surface temperature (from -50 degree to 400 degree) of liquid, steam, gas and solid during various production process.
Application
It is used for the temperature measuring and control in the erumpent processing of chemical fiber, rubber plastic, food etc.
Specification
| Name | thermocouple , temperature sensor, explosion proof temperature transducer |
| Model | WR-202 |
| Temperature range | -50 to +400°C |
| Output | 4-20mA |
| Power supply | 10~30VDC |
| error | 0.1%FS, 0.3%FS, 0.5%FS |
| Media compatibility | 316L stainless steel |
| Pressure connection | Thread M20, M18*1.5 optional |
| Protection tube | Stainless steel 6mm and 8mm dia. |
| Insert length (L) | 30mm <L<500mm |
| Sensing element | J,K,E, PT100,CU50 temperature sensor |
| Electrical connector |
Water proof junction box |
