Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | Wuhan, China |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | Normal exporting cartons |
| Delivery Time: | 2 weeks after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 Piece/Pieces per month |
| Usage: | Industrial | Temperature Range: | 0-1300℃ |
|---|---|---|---|
| Thermocouple Wire Element: | Simplex/duplex | Probe Material: | 304SS/316SS/ect. |
| Accuracy: | ±1.5℃ | Fixing: | Thread/flange/none |
| High Light: | temperature sensor rtd,resistance temperature detecto |
||

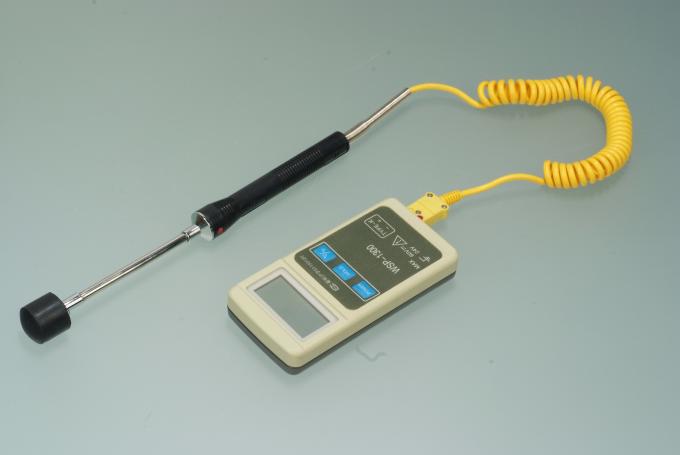

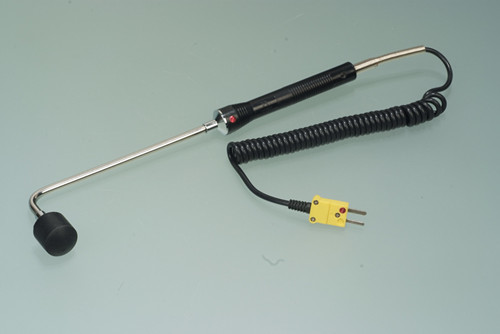

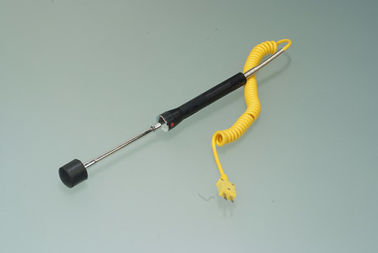

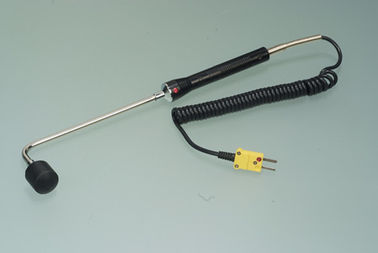

1. Hand-held Thermocouple Temperature Sensor/Sheathed K type Thermocouple
2. Specification of pt-rh thermocouple
1).S/B/R type pt-rh thermocouple
2).wire diameter:0.3mm, 0.4mm, 0.5mm
3).length:can be customized as for customer's requirement
4).measuring range:0-1600C
5).fixed device:screw thread/flange
6).terminal box: water-proof type, splash-proof type, anti-explosion type, connector type
3. Technical Parameters of pt-rh thermocouple
1).material: PtRh10-Pt, PtRh30-PrRh6, PtRh13-Pt
2).use temperature:0-1300,0-1600
3).max temperature: 1800°C
4).experiment temperature: 0-1600°C
5).thermal response Time:≤120s
Accuracy: Class I, Class II
Nominal diameter:Φ1
Bending diameter: R≥5D
Nominal pressure: normal pressure
Type and graduation
| Type | K |
| Model | WRN-130 230 330 430 530 191 |
| Circle diameter | customized |
| Temperature range | 0~+1300C |
| Tube material | SS310/304/316,inconel600/ceramic |
| Fixing | screw/flange/none |
| Cable | stainless/silicone/ |
