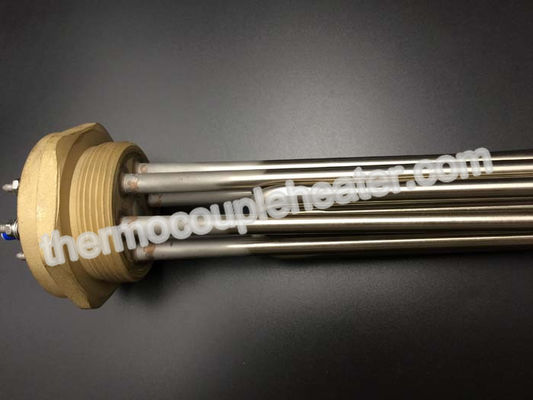

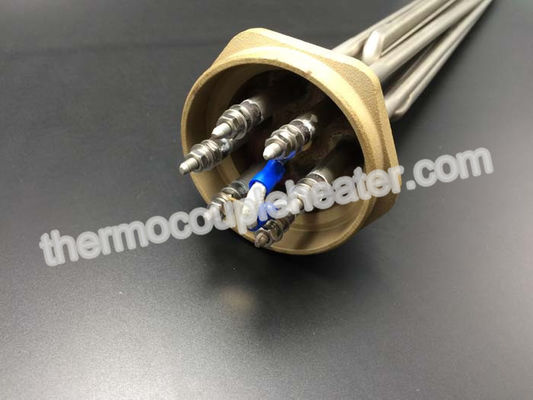

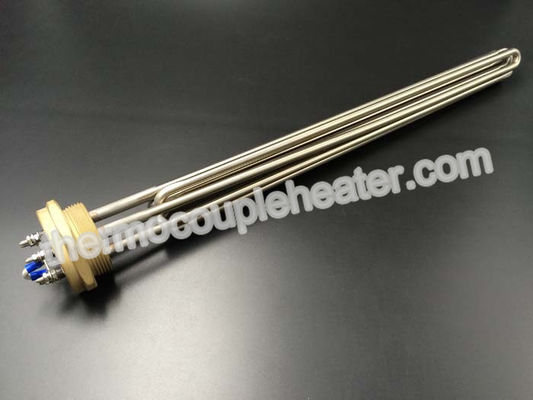

3 Element Industrial Tubular Heaters / Flange Immersion Heater For Rinse Tank Heating

Large Image : 3 Element Industrial Tubular Heaters / Flange Immersion Heater For Rinse Tank Heating

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton or wooden crate or as per your request
Delivery Time:	10 working days or above
Payment Terms:	L/C, T/T,PAYPAL
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial AISI 304 Process Immersion Heater With Three Element	Application:	Industrial Heating Elements
Sheath Material:	Incoloy 800, SS 304, SS 321, SS 316	Voltage:	110V-380V, Or Special To Order
Resistance Wire:	Ni80Cr20	Power:	Customized
Highlight:	flexible tubular heater , thermostatic tubular heater

Industrial AISI 304 Process Immersion Heater With Three Element

Product Description

Flange Immersion Heaters, both round flange and square flange models are a great choice for applications requiring larger wattages .Flanged immersion heater are designed for installation into a pipe body, tank or pressure vessel using standard pipe size.
These heaters are available in a wide selection of rates, sizes and sheath materials suitable for the heating requirements of water, air and other gases. Flange immersion heaters are very efficient since all energy that is generated is dissipated directly into the medium which is being heated .All flanged heater models incorporate tubular heater construction welded or brazed into a carbon steel pipe flange .

Specification

Material	Material Max. Temp. °C	Application
Copper	150	Water, non-corrosive liquids
Steel	400	Oil immersion
Stainless Steel 304	650	Water,Corrosive liquids, food processing
Stainless Steel 316	650	Corrosive liquids,
Stainless Steel 321	650	intergranular corrosion situation
Incoloy 800	800	Water ,Corrosive liquids, air, clamp on

Sheath Dia. ±0.15mm	6.4	8	10	12	14	16	18	20	25
Sheath Length Max. (mm)	6000	6000	6500	6500	7000	7000	7000	7000	7000
Maximum Voltage	250	277	480	550	550	550	550	550	550
Wattage Tolerance	+5% -10%
Resistance Tolerance	+10% -5%

Feature

1. Copper, steel, SS and Incoloy® and other heater sheaths available, custom tailored to application requirements
2. Integral thermostats or thermocouples available, allowing integral control or temperature monitoring

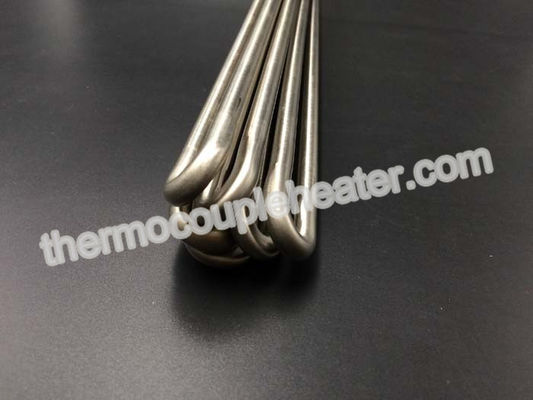

3. Recompacted element bends provide longer life by ensuring insulation integrity

4. Element Spacers & Supports, maximizes heater life and application performance

Application

1. Process Chemical Reactors
2. Process Air & Gas Heating
3. Boilers and Water Heating
4. Rinse Tank Heating
5. Parts Cleaning Solutions
6. Lube Oil & Fuel Oil Heating
7. Hydraulic and Heat Transfer Oils
8. Caustic Solution Heating
9. Plating & Finishing Chemicals
10. Water-Glycol Solution Heating
11. Freeze Protection & Winterizing
