Reliable Spring Hot Runner Coil Heater 3x3mm Type J,K 12V/24V/110V/120V/220V/230V , 12V-380V

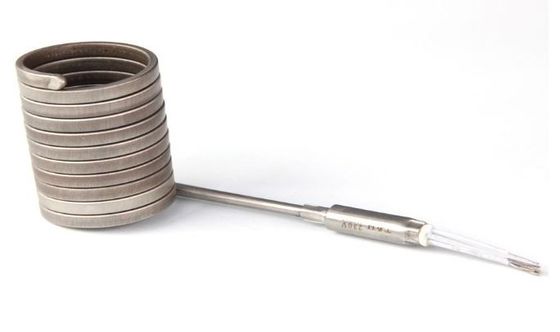

Large Image : Reliable Spring Hot Runner Coil Heater 3x3mm Type J,K 12V/24V/110V/120V/220V/230V , 12V-380V

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation
Packaging Details:	Standard Export Packing
Delivery Time:	7-15 working days after received your payment
Payment Terms:	T/T, Western Union or Paypal
Supply Ability:	1000 Pieces per Week

Contact Now

Detailed Product Description

Power Source:	Electric	Sheath Material:	SS304,SS310
Thermocouple:	Without, With K Or J Type	Heating Element:	OCr20Ni80
Insulation Material:	High Pure MgO	Insulation:	>5 M W
Highlight:	electric resistance heater , coil heater with thermocouple

Detailed product description:

Name:	Band Heater, coil heater	Power Source:	Electric	Condition:	New
Dimension(LWH):	customized	Weight:	0.15kg/pc	Voltage:	12V/24V/110V/120V/220V/230V, 12V-380V
Power(W):	70-3000W	Certification:	CE ISO	Warranty:	1 year
Inner diameter:	15.8/16/20mm or customized	Minimum diameter:	8mm	Sheath Material:	SS304,SS310
Thermocouple:	without, with K or J type	Heating element:	OCr20Ni80	Sheath's length:	500/1000/1200/1500/2000mm
Available sheath:	nylon,metal braided,fiberglass ,silicone rubber, kevlar	Connector:	without or with 5 pin xlr,4 pin min xlr connector	Connector' color:	silver or fully black

The following specification are widely applied in American market or make regular or flat coil heater for enail as request

Coil heater: 110/120V,100W/150W/200W ,15.8/16/20mm and height 12.7mm,with k type thermocouple and ground wire, with 5 feet black kevlar sheath and fully black XLR male plug.

12VDC,70W ,15.8/16/20mm and height 12.7mm,with k type thermocouple and ground wire, with 5 feet black kevlar sheath and fully black XLR male plug.

The flat coil heater: 110/120V,100W/150W/200W ,8/9/10mm ID and 25/26mm OD, with k type thermocouple and ground wire. with 5 feet black kevlar sheath and fully black XLR male plug.

12VDC, 70W ,8/9/10mm ID and 25/26mm OD ,with k type thermocouple and ground wire. with 5 feet black kevlar sheath and fully black XLR male plug.

Parameters:

Sectional area	3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3
Minimum ID	8mm
Sheath Material	SS304,SS310
Insulation Material	High Pure MgO
Resistance Wire	Cr20Ni80
Maximum Sheath Temperature	700℃
Die Electrical Strength	800V A/C
Insulation	>5 M W
Dimensional Tolerance	Coil I.D + 0.1 to 0.2mm// Coil Length + 1mm
Wattage Tolerance	+10% (+5% Available Upon Request)
Voltage	12V~380V
Wattage	70W~1000W
Build-in thermocouple power	Without or with J/K thermocouple
Sheath's length	500/1000/1200/1500/2000mm
Available sheath	nylon,metal braided,fiberglass ,silicone rubber, kevlar
Sheath's color	standard is black,other color is also available
Connector	without or with 5 pin xlr,4 pin min xlr connector
Connector' color	silver or fully black

Packaging & Delivery

Packaging Details:	plastic bag or carton box for 3x3mm Spring Hot Runner Coil Heater
Delivery Detail:	depend on the order quantity
