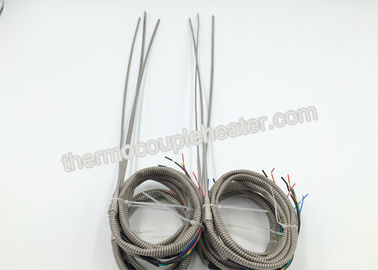

Micro Tubular Coil Heaters with Thermocouple J

Micro Tubular Coil Heaters with Thermocouple J

1. Coil Heater Brief Introduction

Hot runner heater is an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters.

These heaters are also known as high performance tubular heaters or cable heaters. The basic construction of these heaters consist of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube.

These heaters can be constructed with or without built in thermocouples. They are usually installed where space available for heating is limited and are widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines etc.

2. Coil Heater Characteristics

• A very wide contact surface results in exceptionally high levels of thermal conductivity towards the body that needs to be heated.
  Optimal insulation results in very long life duration.
  Heavy-duty construction results in very high resistance to mechanical shocks.
  Operation temperature up to 750°C (1300°F).
  Optional built-in thermocouple for high-resolution temperature measuring (J-type standard; K-type on request)

3. Coil Heater Parameter.

4. Application

For heating the nozzles of Injection Molding Machines.
Thin Walled Container Moulds.
Hot Runner Nozzles & Bushings.
PET Preformed Moulds.
Packaging industry.
Welding bars.
Rolls' heating.
Disks' heating.
Plates' heating.
