Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
Product Details:
Payment & Shipping Terms:
|
China
| Product Name: | Electric Resistance Heater | Application: | Hot Runner |
|---|---|---|---|
| Certification: | CE, Rohs, ISO9001 | Moistureproof: | IP65 |
| Insulated Material: | Comressed MgO | Watt Density: | 6.5 W /CM 2 |
| Power(W): | 200-3000W | Max.Tempreture: | 650℃ |
| High Light: | Electric Coil Heaters,coil heater with thermocouple,350W 230V Hot Runner Coil Heater |
||

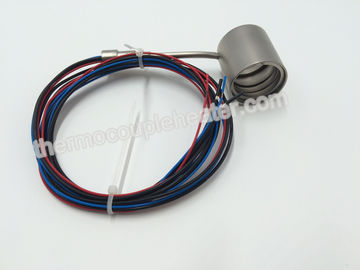

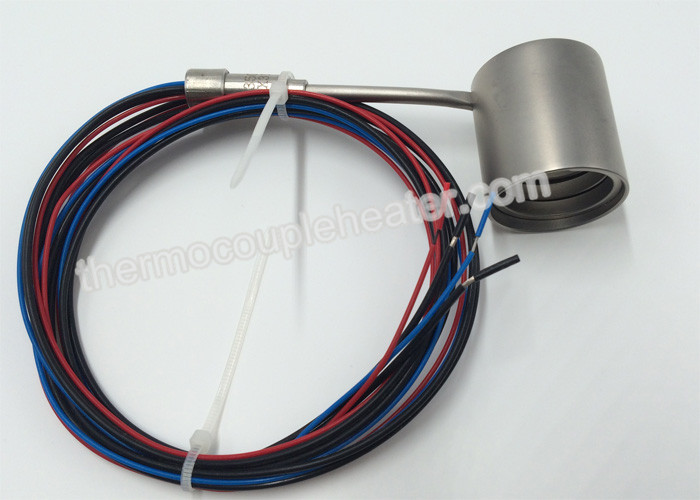

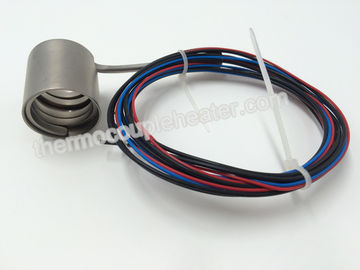

350W 230V Hot runner Coil Heater with Armor And Type J Thermocouple
1. Electric Resistance Heater Brief Introduction
Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.
Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.
2. Electric Resistance Heater Characteristics
3. Electric Resistance Heater Application
4. Electric Resistance Heater Parameter.
Standard Configuration
Material :304
Unheated length(L1):45mm
Connector(cold side)(D1xU): Ф3.5x40mm
Power lines,grounding wire length(L):1000mm
Surface treatment:sandblasting;
|
Spring coil heater (H series) |
2.2x1.5, 2.4x1.6, Φ1.8,Φ2.0,Φ2.5 |
|
Voltage |
220V,230V,240V |
|
Power tolerance 115W-200W |
+/-10% |
|
Power tolerance 201W-2000W |
+5%-10% |
|
Out jacket length |
30mm~190mm |
|
Diameter of the inner sleeve/wrapped diameter |
10mm~42mm |
|
Unheating length |
45mm |
|
Max power density |
9W/cm² |
|
Heating Length tolerance |
+/-0.05mm |
|
Unheating length tolerance |
+/-2.5% |
|
Tolerance ID d ≤20mm |
Without inner sleeve:-0.15mm |
|
Tolerance ID d 20mm~30mm |
Without inner sleeve:-0.20mm |
|
Tolerance ID d ≥30mm |
Without inner sleeve:-0.25mm |
|
Tolerance cross section |
+/-0.10mm |
|
Thermocouple |
None |
|
Material |
304,321,316 |
|
Maximum working temperature |
650℃ |
|
Die electrical strength |
600V |
5. Packing Information
6. Transportation
