Industrial Liquid Screw Plug Immersion Heaters For Heating Water , ISO9001

Large Image : Industrial Liquid Screw Plug Immersion Heaters For Heating Water , ISO9001

Product Details:

Place of Origin:	China
Certification:	ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton or wooden crate or as per your request
Delivery Time:	10 working days or above
Payment Terms:	L/C, T/T,PAYPAL
Supply Ability:	90000pcs per month

Contact Now

Detailed Product Description

Product Name:	Screw Plug Immersion Heaters For Heating Water And Liquid	Application:	Industrial Heating Elements
Sheath Material:	Incoloy 800, SS 304, SS 321, SS 316	Voltage:	Customized
Resistance Wire:	Ni80Cr20	Power:	Customized
Highlight:	flexible tubular heater , thermostatic tubular heater

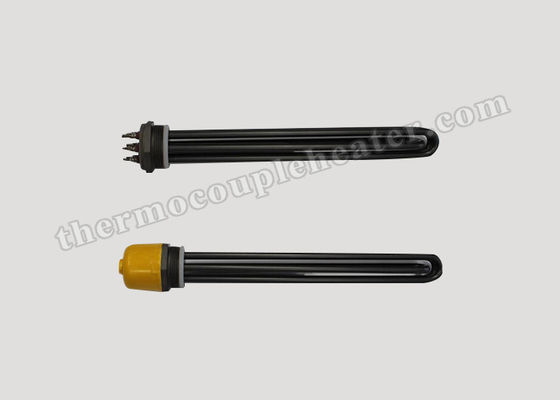

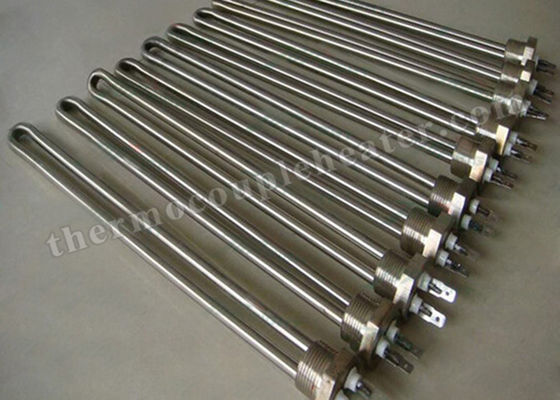

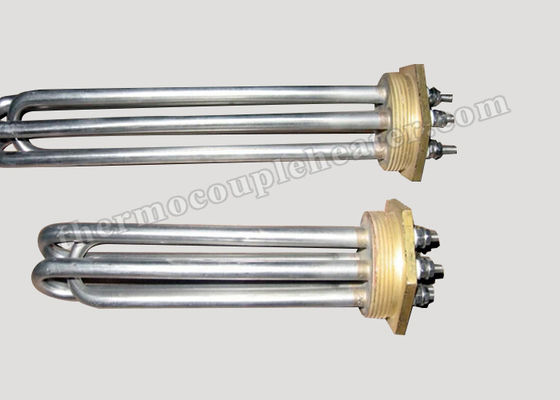

Screw Plug Immersion Heaters For Heating Water And Liquid

Product Description

Screw plug immersion heaters are used in almost every liquid heating application imaginable, including water, mild solutions, detergents, vegetable oil, aqueous solutions, tar, asphalt, petroleum products, plating chemicals, molten salt baths, grease, gas or grape juice. Various sheath, screw plug and corrosion-resistant hardware materials are available. NEMA enclosures for all moisture and explosion-proof conditions, as well. Optional thermocouples for control or high limit protection, plus a full range of thermostatic controls, can also be provided.

Specification

Material	Maximum Operating Temperatures		Maximum Watt Densities
Material	°F	°C	W/in²	W/cm²
Incoloy®	1600	870	120	18.6
Stainless steel	1200	650	120	18.6
Steel	750	400	120	18.6
Copper	350	175	120	18.6

1). Watt densities to 120 W/in2 (18.6 W/cm2)
2). Wattages to 38 kilowatts
3). Recognition to 480VAC and 600VAC respectively
4). Incoloy® sheath temperatures to 1600°F (870°C)
5). Passivated 316 stainless steel sheath temperatures to 1200°F (650°C)
6). 304 stainless steel sheath temperatures to 1200°F (650°C)
7). Steel sheath temperatures to 750°F (400°C)
8). Copper sheath temperatures to 350°F (175°C)

Feature

1. Standard Screw Plug Sizes Standard for easy fit into most applications.
2. Wide Variety of Material, Enclosure, Control and Power Rating Options provide the optimized solution for your needs.
3. Brazed or Welded Construction ensures a pressure tight seal.
4. Integral Thermostats or Thermocouple allows integral control or temperature monitoring.
5. Recompacted Bends provide longer life by ensuring insulation integrity.

Application

1. Boilers & Water Heating
2. Clean & Process Water
3. Freeze Protection & Winterizing
4. Heat Transfer Systems
5. Lube & Fuel Oil Heating
6. Parts Cleaning Solutions
7. Plating & Finishing Chemicals
8. Temperature Control Units
9. Wash Systems
10. Wax Heating
