Product Details:
Payment & Shipping Terms:
|
China
| Usage: | Accessories Of Heating Elements | Application: | Electric Appliance Industry / Automotive Industry / Mechanical Industry / Engineering Industry / Electrical Heating Element Industry / LED Lighting Industry |
|---|---|---|---|
| Material: | Steatite Ceramics /C221 Ceramics /High Frequency Ceramics | Size: | 2-8 Holes, With Or Without Slot |
| Color: | White / Grey / Pink | Producing Method: | Hot Pressing /Dry Pressing |
| Max.Using Temperature: | ≥1000°C | Slot: | With Or Without, Customized |
| High Light: | High Temperature Resistance Steatite Ceramic Insulators,Band Heater Steatite Ceramic Insulators,Steatite Ceramic Thermocouple Components |
||

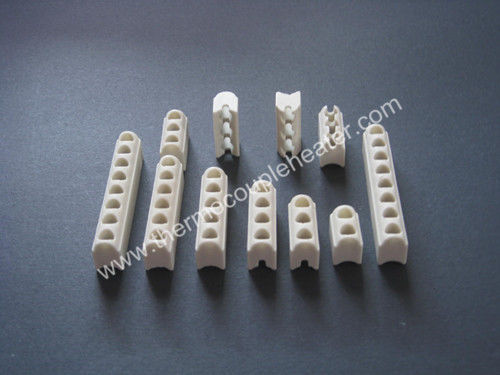

High temperature resistance 2-8 holes steatite ceramic insulators with or without slot
Description :
Material : Steatite Ceramics /C221 Ceramics /High Frequency Ceramics
Producing Method: Hot pressing /Dry pressing
Color : White / Grey / Pink
Packing :Carton /Pallet/Wooden case (According to clients requirement )
Delivery time : Depend on client’s requirement product.
Items Design: According to client’s drawing or samples
Steatite Ceramics Technical Parameter
| Item | Test Condition | Unit &Symbol | Steatite Ceramic/C221 |
| Mainly Content | Steatite | ||
| Bulk Density | g/cm3 | ≥2.6 | |
| Max.Using Temperature | ≥1000°C | ||
| Water Absorption | % | 0 | |
| Hardness | HRA | ≥75 | |
| Compressive Strength | 20° C | MPa | ≥80 |
| Toughness | Mpa | ≥120 | |
| Dielectricity constant | 1MHz.20°C | ετ | 5.5 |
| Dielectric strength | KV/mm | 18 | |
| Volume Resistivity | 20°C | Ω.cm20°C | > 1012 |
Features:
Steatite is used to support heating elements in electric heaters, toasters, and ovens.
Steatite is a good high voltage insulator. It holds up under thousands of volts without breaking down.
Steatite ceramic parts are usually small and are formed from dry powder in a compaction press. The parts are then fired in the kiln. Diamond abrasives are used to grind parts to size for high tolerance applications.
Application:
Electric appliance industry / Automotive industry / Mechanical industry /
Engineering industry / Electrical heating element industry / LED Lighting Industry
Package:
