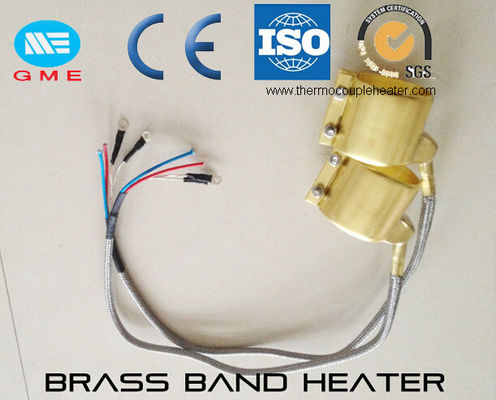

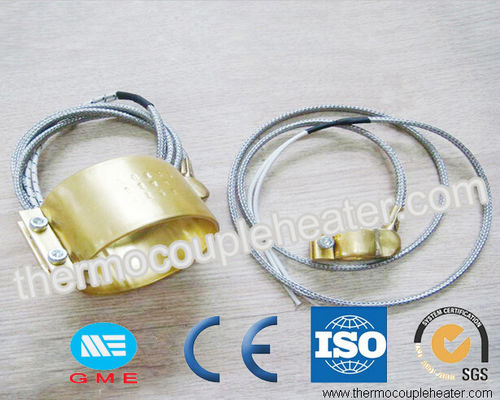

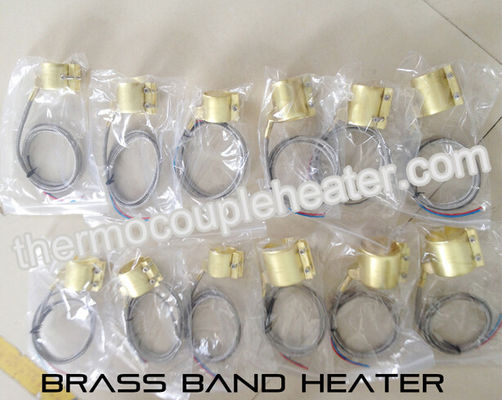

Customizable Electric Band Element Electric Band Heater Brass Nozzle Heater

customizable electric band element electric band heater brass nozzle heater

Description:

1) Nozzle & Band heaters are are used in plastic processing industry for keeping the nozzles of injection molding machines hot. Nozzle heaters are manufactured from high quality mica sheet or ceramic, and have Nickel Chrome resistance.

2) Nozzle heaters are covered by metal sheathing & can be rolled to the required shape. Band heaters operate efficiently when the sheath temperatures are kept below 280 degree centigrade. If this temperature is maintained, the life of the band heaters gets long.

Specification:

1,Brass tubular sheath (available in stainless steel for corrosive materia Copper Nozzle Band Heater ls such as PVC).

2, Power standard density: max brass 5 W/cm²

3,Tear-resistant connection of power cable.
4,dia is available from 25mm to 150mm,and height is available from 25mm to 70mm.

5,Thermocouple K or J is available

Application:

Plastic processing Machinery

Injection & Blow Molding

Extruders

All Plastic & Rubber Processing Machinery

Many other Applications. (Medical, Lab-equipments…etc)

Dies

Cylinders and drums

Plastic film extruders

Injection and blow Moulding machine

Holding Tanks

All Plastic & Rubber Processing Machinery
