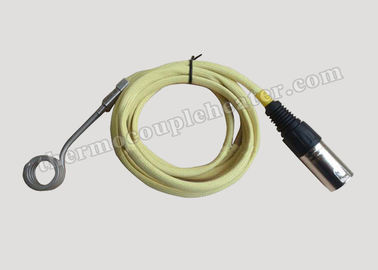

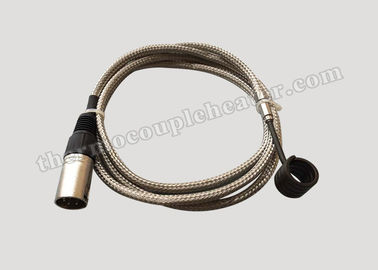

4.2x2.2mm Injection Molding Heaters Coil with Male Plug
1. Heaters Coil Brief Introduction
Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high purity magnesium
oxide material, and strict process technology. There are various cross section and size for choice, such as
square, round and flat, provide high performance electric heater for heating hot runner mold and other fields.
Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise
temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can
provide bright surface.
2. Heaters Coil Characteristics
a. The inside insulated cover, same as the German GC.
b. High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special
requirement if customers need.
c. Very good performance of the heating uniformity in the heating area.
d. The moisture-proof can be IP65, suitable for working in bad condition.
3. Heaters Coil Application
- Injection moulding machine nozzle
- Hot Runner Nozzles & Bushings.
- Packaging machineries
- Hot runner Injection moulds.
- Injection & Blow Moulding Machine Nozzles.
- PET prefrom & Thin wall container Moulds
- Hot runner Manifolds.
4. Heaters Coil Parameter.
|
Spring coil heater (H series)
|
3.0x3.0
3.3x3.3
4.0x2.0
4.2x2.2
4.5x2.7
|
Φ3.0
|
Φ4.0
|
Φ5.0
|
3.5x3.5
4.0x4.0
|
5.0x5.0
|
|
Voltage
|
220V,230V,240V
|
|
Power tolerance 115W-200W
|
+/-10%
|
|
Power tolerance 201W-2000W
|
+5%-10%
|
|
Out jacket length
|
30mm~280mm
|
|
Diameter of the inner sleeve/wrapped diameter
|
10mm~42mm
|
|
Unheating length
|
45mm
|
|
Max power density
|
9W/cm²
|
|
Heating Length tolerance
|
+/-0.05mm
|
|
Unheating length tolerance
|
+/-2.5%
|
|
Tolerance ID d ≤20mm
|
Without inner sleeve:-0.15mm
With inner sleeve:0.05mm~0.10mm
|
|
Tolerance ID d 20mm~30mm
|
Without inner sleeve:-0.20mm
With inner sleeve:0.05mm~0.10mm
|
|
Tolerance ID d ≥30mm
|
Without inner sleeve:-0.25mm
With inner sleeve:0.05mm~0.10mm
|
|
Tolerance cross section
|
+/-0.15mm
|
+/-0.20mm
|
|
Thermocouple
|
K,J,E
|
None
|
|
Material
|
304,321,316
|
|
Maximum working temperature
|
650℃
|
|
Die electrical strength
|
800V
|
1000V
|
