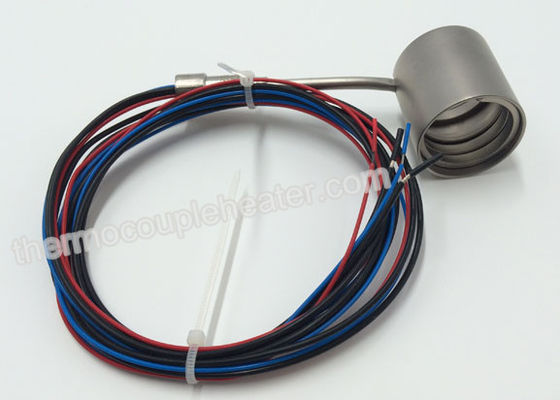

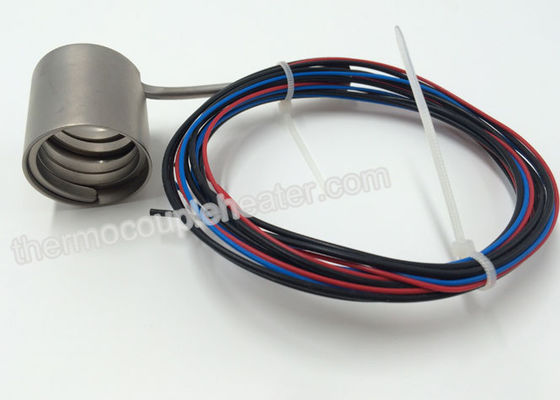

Height 31MM Coil Heater With Stainless Steel Armor Outside And Type J Thermocouple

Height 31MM Coil Heater With Stainless Steel Armor Outside And Type J Thermocouple

    • Height 31MM Coil Heater With Stainless Steel Armor Outside And Type J Thermocouple
    • Height 31MM Coil Heater With Stainless Steel Armor Outside And Type J Thermocouple
  • Height 31MM Coil Heater With Stainless Steel Armor Outside And Type J Thermocouple

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: Coil Heater

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15 working days after received your payment
    Payment Terms: D/P, L/C, T/T, Paypal, , Western Union
    Supply Ability: 20,000pcs per month
    Detailed Product Description
    Product Name: Electric Resistance Heater Application: Hot Runner
    Certification: CE, Rohs, ISO9001 Moistureproof: IP65
    Insulated Material: Comressed MgO Watt Density: 6.5 W /CM 2
    Power(W): 200-3000W Max.Tempreture: 650℃

    Height 31MM Coil Heater With Stainless Steel Armor Outside And Type J Thermocouple




    1. Electric Resistance Heater Brief Introduction



    Coil heaters and cable heaters are elongated heating elements. They include heating cables as well as coil heaters that are formed from straight, uncoiled segments of round or square tubular heating elements. They may be supplied as a straight cable or formed into a variety of shapes including star wound or spiral wound elements, and other specialty configurations. The configuration is formed into a pattern that either increases the surface area, heat transfer capability, or otherwise into a configuration that best suits a particular application.



    2. Electric Resistance Heater Characteristics



    •  Standard sizes available with various cross section
    • Various Watt Density options available.
    •  Robust Design with Choice of Terminal Exits
    •  Designed for even heat profile
    • Precision fit on Hot Runner Nozzles & Manifolds
    • Highly Non-corrosive
    • Maximum heat transfer due to more contact area
    • Advanced Thermal Engineering
    • CE Certified
    • Available with built in Thermocouple



    3.  Electric Resistance Heater Application



    • Hot Runner Nozzles & Bushings.
    • Hot runner Injection moulds
    • Injection & Blow Moulding Machine Nozzles.
    • PET prefrom & Thin wall container Moulds.
    • Hot Runner Manifolds.



    4.  Electric Resistance Heater Parameter.



    Standard Configuration

    Material :304

    Unheated length(L1):45mm

    Connector(cold side)(D1xU): Ф3.5x40mm

    Power lines,grounding wire length(L):1000mm

    Surface treatment:sandblasting;



    Height 31MM Coil Heater With Stainless Steel Armor Outside And Type J Thermocouple

    Spring coil heater (H series)

    2.2x1.5, 2.4x1.6, Φ1.8,Φ2.0,Φ2.5

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~190mm

    Diameter of the inner sleeve/wrapped diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d 20mm~30mm

    Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d ≥30mm

    Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance cross section

    +/-0.10mm

    Thermocouple

    None

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    600V



    5. Packing Information



    Height 31MM Coil Heater With Stainless Steel Armor Outside And Type J Thermocouple



    6. Transportation



    Height 31MM Coil Heater With Stainless Steel Armor Outside And Type J Thermocouple
