Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 110-240V / 50-60Hz | Warranty: | One Year |
| Power: | 195W-690W | Style: | Straight Or Coil |
| Heating Wire Material:: | Cr20Ni80 | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | Brass Or Stainless Steel | Color: | Copper |
| Application: | Widely Used | Height: | 10mm~200mm |
| High Light: | J Thermocouple Runner Coil Heater,Electric Runner Coil Heater,Brass Electric Hot Runner Coil Heater |
||

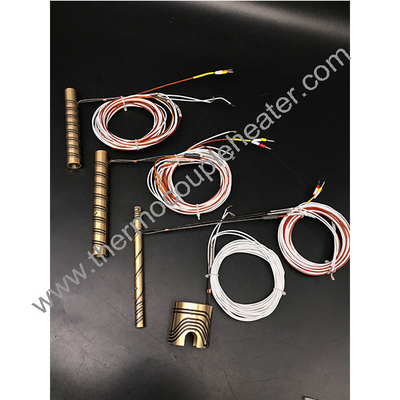

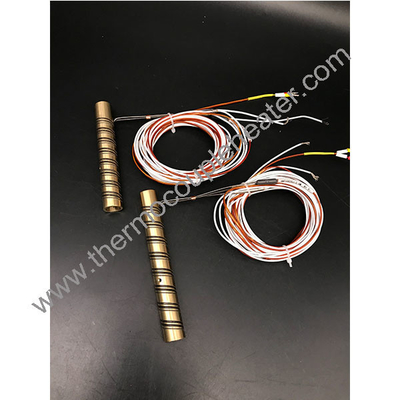

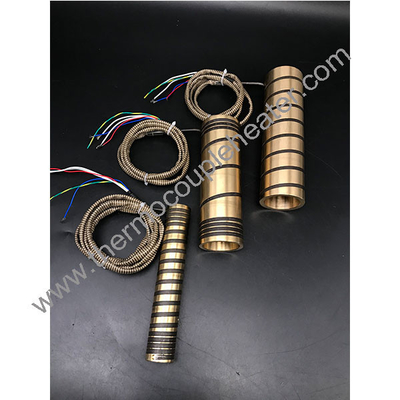

Nozzle type hot runner heater ,the spring heating ring is embedded in brass, to make full use of high-efficiency heat transfer performance of brass. excellent performance, fast heating effect and long service life .Moreover, it solves many technical problems of hot runner such as salivation and wire drawing caused by nozzle temperature.
Specification:
1.Standard sizes available with various cross section
2. Various Watt Density options available.
3. Robust Design with Choice of Terminal Exits
4. Available with built in Thermocouple
5. Designed for even heat profile.
6. Precision fit on Hot Runner Nozzles & Manifolds.
7. Highly Non-corrosive.
8. Maximum heat transfer due to more contact area.
9. Advanced Thermal Engineering.
Application:
1.Injection molding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds
5. Injection & Blow Moulding Machine Nozzles
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds
