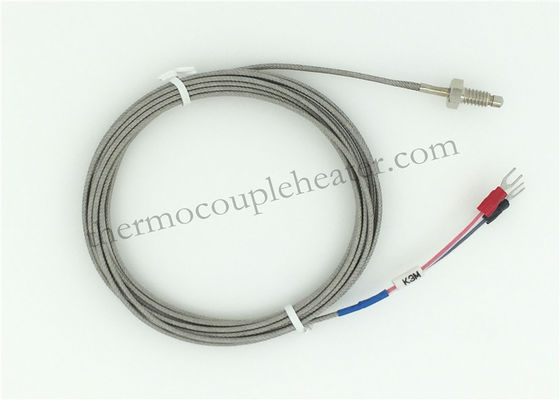

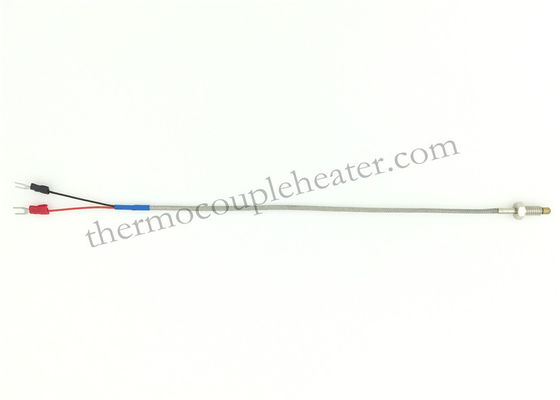

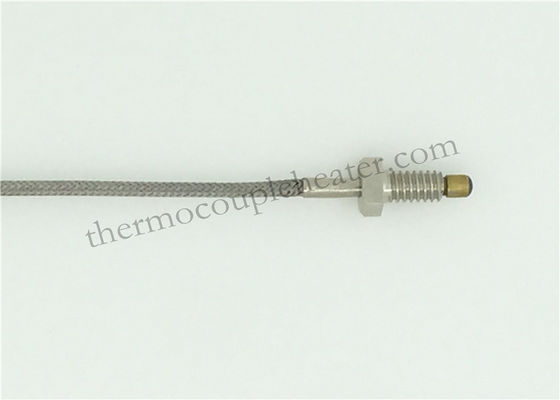

J Type M5 M6 Screws Thermocouple Temperature Sensor With Indicators

J Type M5 M6 Screws Thermocouple Temperature Sensor With Indicators

    • J Type M5 M6 Screws Thermocouple Temperature Sensor With Indicators
    • J Type M5 M6 Screws Thermocouple Temperature Sensor With Indicators
    • J Type M5 M6 Screws Thermocouple Temperature Sensor With Indicators
  • J Type M5 M6 Screws Thermocouple Temperature Sensor With Indicators

    Product Details:

    Place of Origin: China
    Certification: ISO9001/ CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Carton or as per your request
    Delivery Time: 7~20 working days
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Product Name: J Type M5 M6 Screw In Thermocouple Application: Temperature Sensor For Plastic And Rubber Industry
    Calibration: Type K Accuracy: Class I
    Max.temperature: 900F Or 500C Probe Material: 304SS ,316SS

    J Type M5 M6 Screw In Thermocouple



    Product  Description:



    Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers. A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.



    J Type M5 M6 Screws Thermocouple Temperature Sensor With Indicators



    Specification:



    Nozzle Bolt Thread Size

    1/4” x 28 UNF

    M6 X 1mm

    M8 X 1mm

    M8 x 1.25mm

    Calibration

    Type K ,Type J



    Accuracy

    Class I



    Junction

    Ungrounded , Grounded



    Wire Description

    20 Gage Stranded stainless steel braid

    Flexible armor cable

    20Gage Stranded fiberglass cable

    20Gage Stranded Teflon Cable

    Termination type

    3” split leads and 1/2” Bare Ends,

    3” split leads and No.10 Spade lugs,

    Standard Male Plug,

    Standard Female Jack,

    Mini Male Plug,

    Mini Female Jack,



    Accessories

    None,

    Bx connector,

    Cable clamp



    Feature:


    It has a variety of advantages, such as: easy assembly and convenient for replacement, high mechanical strength, good pressure-resistant, good shock-proof performance. It is usually connected with display meter, recording meter and computer, etc. To directly measure temperature of liquid, vapor, gas,   and solid surface ranging from 0 °C to 1300 °C during various production processes. Besides it widely measuring range.



    Application:



    Plastic injection molding machinery
    Food processing equipment
    Engine and turbine exhaust gas
    Semiconductor processing
    Heat treating and metals processing
    Medical equipment
    Aerospace industries
    Packaging equipment
