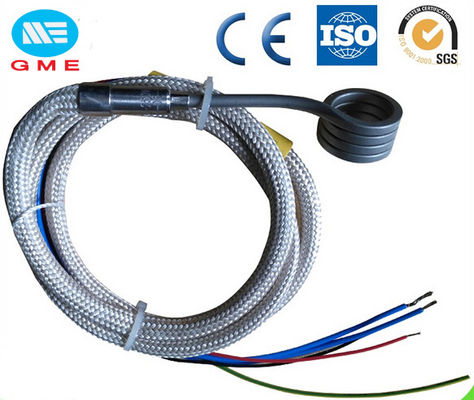

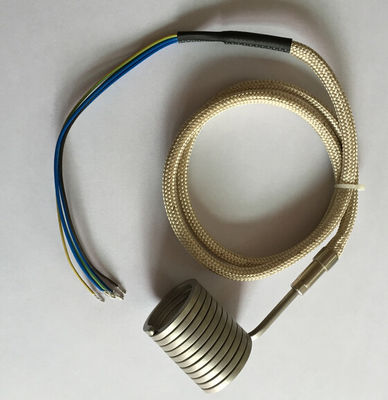

3.0 X 3.0mm Spring Enail Hot Runner Coil Heater With Thermocouple J , K CE Approval
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
Detailed Product Description
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 12-480V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 2.2x4.2mm;3x3mm;4x4mm.. | Style: | Straight Or Coil |
| Lead Wire: | Copper, , Fiberglass Silicon | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | Brass And Stainless Steel | ||
| Highlight: | electric resistance heater,Electric Coil Heaters |
||
3.0X3.0mm spring enail hot runner coil heater with thermocouple J, K
Description:
1) 110/120V,100W/150W/200W ,15.8/16/20mm and height 12.7mm,with k type thermocouple and ground wire, with 5 feet black kevlar sheath and fully black XLR male plug
2) 12VDC,70W ,15.8/16/20mm and height 12.7mm,with k type thermocouple and ground wire, with 5 feet black kevlar sheath and fully black XLR male plug
3) The flat coil heater: 110/120V,100W/150W/200W ,8/9/10mm ID and 25/26mm OD ,with k type thermocouple and ground wire. with 5 feet black kevlar sheath and fully black XLR male plug
4) 12VDC, 70W ,8/9/10mm ID and 25/26mm OD ,with k type thermocouple and ground wire. with 5 feet black kevlar sheath and fully black XLR male plug
Specification:
Square heating cable dimensions(mm)
1.5*2.1; 1.7*3.5; 2*4; 2.2*4.2; 2.7*4.5; 4.2*6.5; 3*3; 3.5*3.5, 4*4, 5*5, 7*7
**Round heating cable dimensions(mm)
Φ1.6, Φ1.8, Φ2.0, Φ3.0, Φ3.3, Φ3.8, Φ5.0
Sheath material: SS304, SS321
Heating wire Ni80Cr20
Insulation material MgO
Surface temperature could be maximum 750℃
Power supply 100V~400V
Wattage error on cold condition +5%~10%.
Insulation resistance on cold condition: DC1000V≥100MΩ.
Current leakage≤0.5mA
| Sectional area | 3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3 |
| Minimum ID | 8mm |
| Sheath Material | SS304,SS310 |
| Insulation Material | High Pure MgO |
| Resistance Wire | Cr20Ni80 |
| Maximum Sheath Temperature | 700°C |
| Die Electrical Strength | 800V A/C |
| Insulation | > 5 M W |
| Dimensional Tolerance | Coil I.D + 0.1 to 0.2mm// Coil Length + 1mm |
| Wattage Tolerance | + 10% (+ 5% Available Upon Request) |
| Voltage | 12V~380V |
| Wattage | 70W~1000W |
| Build-in thermocouple power | without or with J/K thermocouple |
| Sheath's length | 500/1000/1200/1500/2000mm |
| Available sheath | nylon,metal braided,fiberglass ,silicone rubber, kevlar |
| Sheath's color | standard is black,other color is also available |
| Connector | without or with 5 pin xlr,4 pin min xlr connector |
| Connector' color | silver or fully black |
Application:
Packaging machineries
Hot runner Injection moulds.
Injection & Blow Moulding Machine Nozzles.
PET prefrom & Thin wall container Moulds
Hot runner Manifolds.
Injection moulding machine nozzle
Hot Runner Nozzles & Bushings.
