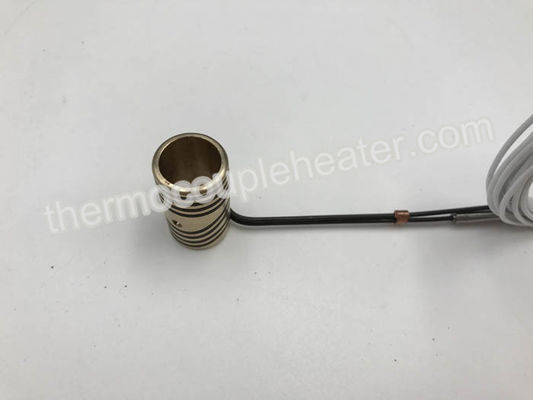

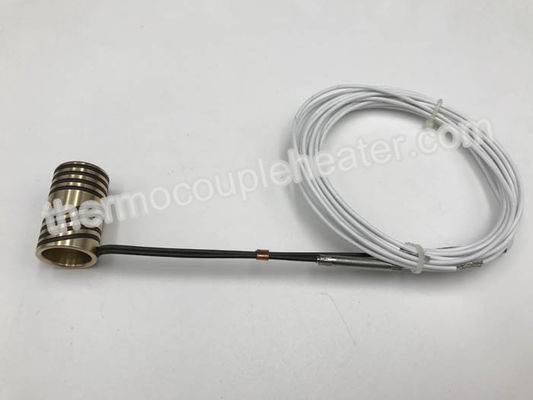

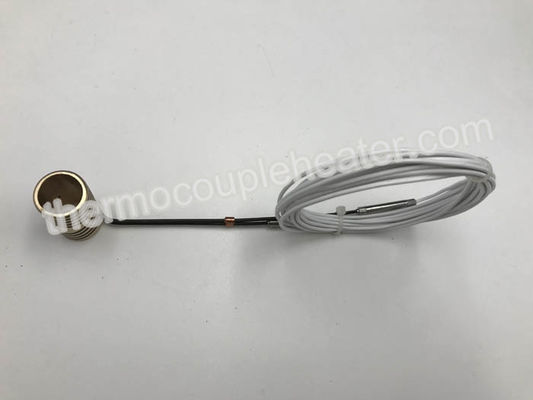

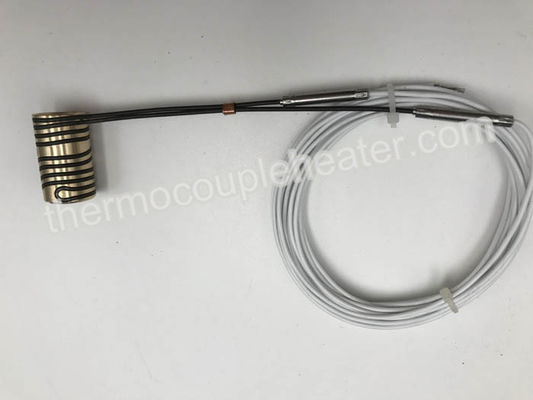

Hot Runner Molding 230V 200W Mini Brass Coil Heater IP65 With PTFE Leads

China Hot Runner Molding 230V 200W Mini Brass Coil Heater IP65 With PTFE Leads supplier
Hot Runner Molding 230V 200W Mini Brass Coil Heater IP65 With PTFE Leads supplier Hot Runner Molding 230V 200W Mini Brass Coil Heater IP65 With PTFE Leads supplier Hot Runner Molding 230V 200W Mini Brass Coil Heater IP65 With PTFE Leads supplier Hot Runner Molding 230V 200W Mini Brass Coil Heater IP65 With PTFE Leads supplier

Large Image :  Hot Runner Molding 230V 200W Mini Brass Coil Heater IP65 With PTFE Leads

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 7-15 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 10,000 pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Wire Insulation: Etc. Name: Brass Coil Heater
Protection Sleeves: Fiberglass, Silicon, Braided Metal Screen Etc Application: Hot Runner System
Material: Stainless Steel 304 Etc Lead Wire Length: 1000mm Or Customize
Warranty: 1 Year Insulated Material: Comressed MgO
Moistureproof: IP65 Cross Section: 1.5mm
Tube Length: 200 - 2500 Mm Form: Straight Or Coiled
Type: Tangential, Radial Exits, Axial Wire: Braided Copper Tinned Conductor Etc
High Light:

electric resistance heater

,

Electric Coil Heaters

230V 200W Mini Brass Coil Heater For Hot Runner Molding With PTFE Leads​





1. Introduction



GME is one of the reputed manufacturers of Pressed in Brass Coil Heater all over the globe. Manufactured using superior quality material, these products are suitable for eliminating known problems that are associated with the casting process in spectrometry industries. Our range is capable of functioning 8% faster than cast in brass heaters. The component integrated in the brass for the heater enables in facilitating exact repeatability of heat profile. Furthermore, even when the coil heaters are exposed with molten brass, there would be no destruction of the thermocouple junction. Our products are available in flexible designs like internal, external “wound in” or external slotted type J or type K thermocouple.



2. Characteristics



1). Tight fit on nozzle
2). Optimal heat distribution
3). Superior heat transfer
4). Up to 1200°F at inner brass casing
5). Highly non-corrosive




3. Parameter



Spring coil heater (H series) 3.0x3.0
3.3x3.3
4.0x2.0
4.2x2.2
4.5x2.7
Φ3.0 Φ4.0 Φ5.0 3.5x3.5
4.0x4.0
5.0x5.0
Voltage 220V,230V,240V
Power tolerance 115W-200W +/-10%
Power tolerance 201W-2000W +5%-10%
Out jacket length 30mm~280mm
Diameter of the inner sleeve/wrapped diameter 10mm~42mm
Unheating length 45mm
Max power density 9W/cm²
Heating Length tolerance +/-0.05mm
Unheating length tolerance +/-2.5%
Tolerance ID d ≤20mm Without inner sleeve:-0.15mm
With inner sleeve:0.05mm~0.10mm
Tolerance ID d 20mm~30mm Without inner sleeve:-0.20mm
With inner sleeve:0.05mm~0.10mm
Tolerance ID d ≥30mm Without inner sleeve:-0.25mm
With inner sleeve:0.05mm~0.10mm
Tolerance cross section +/-0.15mm +/-0.20mm
Thermocouple K,J,E None
Material 304,321,316
Maximum working temperature 650℃
Die electrical strength 800V 1000V





4. Application



Hot runner heater is the important component of hot runner system, which is made of special technque and high quality material, ensuring its efficient work in the close space, even when the heating jacket temperature is 700 degrees Celsius. Complying with the metric system and the international standard, all models are on the basis of VDE0721 quality inspection requirements, so as to meet most factories and hot runner machines.
we provide several kinds of heaters, such as pipe heater, press in brass heater, coil heater and so on.



packaging machinery

medical equipment

casting process

other electric heating industry

hot runner system

plastic industry
