Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE & ISO |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 7-15 working days after received your payment |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 10,000 pcs per month |
| Name: | Coil Heater | Application: | Hot Runner |
|---|---|---|---|
| Material: | Stainless Steel 304 Etc | Lead Wire Length: | 1000mm Or Customize |
| Warranty: | 1 Year | Insulated Material: | Comressed MgO |
| Moistureproof: | IP65 | Cross Section: | 2.2 X 4.2mm |
| Thermocouple: | Type J | Tube Length: | 110 Mm |
| Form: | Straight Or Coiled | Type: | Tangential, Radial Exits, Axial |
| Wire: | Braided Copper Tinned Conductor Etc | Wire Insulation: | Etc. |
| Protection Sleeves: | Fiberglass, Silicon, Braided Metal Screen Etc | ||
| High Light: | electric resistance heater,Electric Coil Heaters |
||

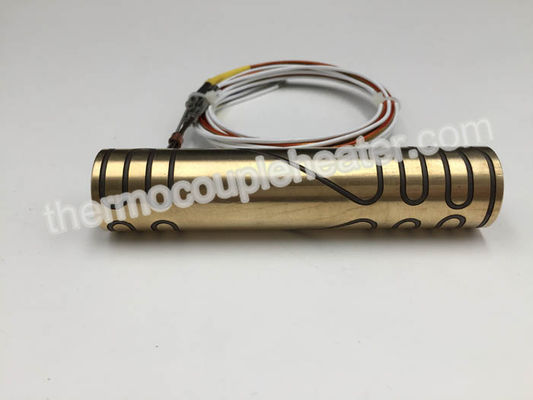

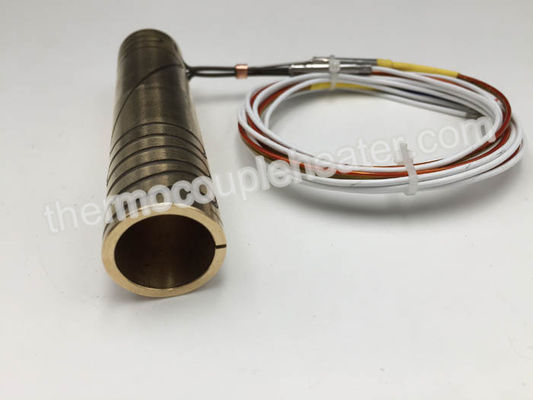

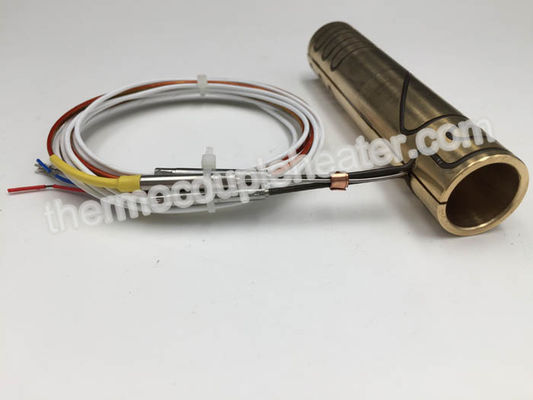

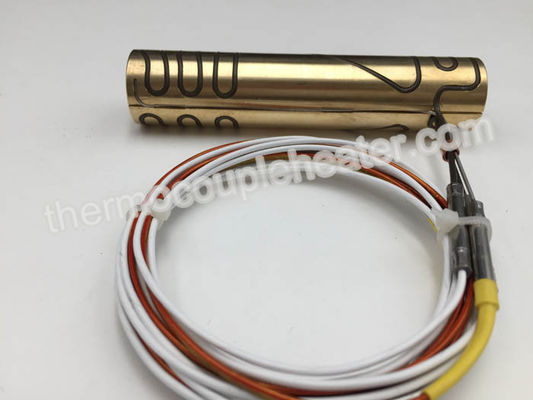

240V 400W Press In Brass Coil Heaters For Injection Mould With Thermocouple J
1. Introduction
Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.
Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.
2. Characteristics
1) Very good performance of the heating uniformity in the heating area.
2) The inside insulated cover, same as the German GC.
3) The moisture-proof is IP65
4) High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.
3. Parameter
| Spring coil heater (H series) | 3.0x3.0 3.3x3.3 4.0x2.0 4.2x2.2 4.5x2.7 |
Φ3.0 | Φ4.0 | Φ5.0 | 3.5x3.5 4.0x4.0 |
5.0x5.0 |
| Voltage | 220V,230V,240V | |||||
| Power tolerance 115W-200W | +/-10% | |||||
| Power tolerance 201W-2000W | +5%-10% | |||||
| Out jacket length | 30mm~280mm | |||||
| Diameter of the inner sleeve/wrapped diameter | 10mm~42mm | |||||
| Unheating length | 45mm | |||||
| Max power density | 9W/cm² | |||||
| Heating Length tolerance | +/-0.05mm | |||||
| Unheating length tolerance | +/-2.5% | |||||
| Tolerance ID d ≤20mm | Without inner sleeve:-0.15mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance ID d 20mm~30mm | Without inner sleeve:-0.20mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance ID d ≥30mm | Without inner sleeve:-0.25mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance cross section | +/-0.15mm | +/-0.20mm | ||||
| Thermocouple | K,J,E | None | ||||
| Material | 304,321,316 | |||||
| Maximum working temperature | 650℃ | |||||
| Die electrical strength | 800V | 1000V | ||||
4. Application
hot runner system
plastic industry
packaging machinery
medical equipment
casting process
other electric heating industry
