Fast Heating Hot Runner Injection Molding Electric Coil Heaters Customized Voltage

Large Image : Fast Heating Hot Runner Injection Molding Electric Coil Heaters Customized Voltage

Product Details:

Place of Origin:	Wenzhou, CHINA
Certification:	CE & ISO

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Packaging Details:	Standard Export Packing
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10,000 pcs per month

Contact Now

Detailed Product Description

Type:	Coil Heater	Lead Wire Material:	Stainless Steel, Fiber Glass,
Power Source:	Electric	Dimension(LWH):	Standard, Customized
Power(W):	Standard, Customized	Voltage:	Standard,customized, 110V 220V Or Customized
Highlight:	electric resistance heater , Electric Coil Heaters

Fast Heating Hot Runner Injection Molding Electric Coil Heaters Customized Voltage

Specifications

Injection Mould Coil Heater
1. 115W-2000W,110V-220V
2. Cross section area:customized
3. Short lead time:7-10days
4. CE RoHS

Injection Mould Coil Heater

The basic construction of these heaters consist of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube. These heaters can be constructed with or without built in thermocouples.

They are usually installed where space available for heating is limited and are widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines.

Features:

1. Various sizes of cross section for your choice, including 4.2x2.2mm, 4x2mm, 3.3x3.3mm, 3x3mm, 2.5mm, 2.0mm, 1.8mm, 1.5mm, and other specificaiton

2. Power density reaches 20 w/cm square

3. Thermocouple type J/K/E can be attached

4. High temperature lead wire and stainless steel shield provided, with sleeving protection

5.1 year guarantee time

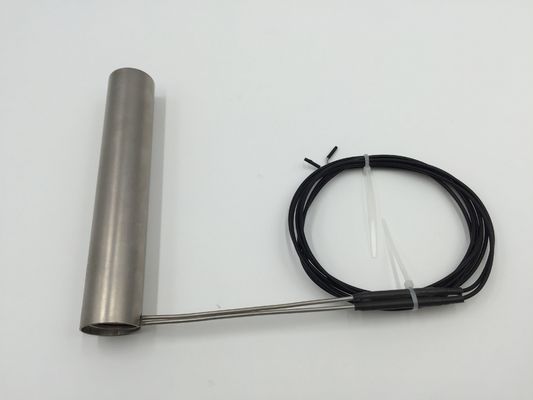

Fast Heating Hot Runner Injection Molding Electric Coil Heaters Customized Voltage 0

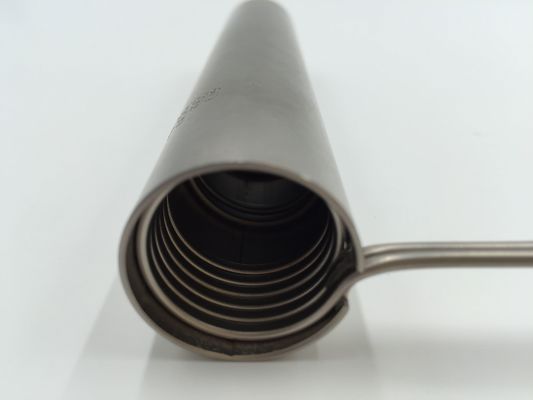

Fast Heating Hot Runner Injection Molding Electric Coil Heaters Customized Voltage 1

Fast Heating Hot Runner Injection Molding Electric Coil Heaters Customized Voltage 2
