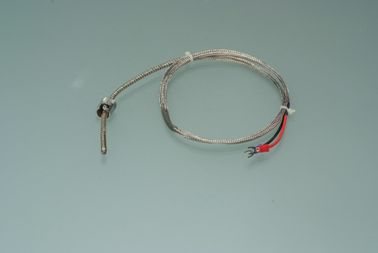

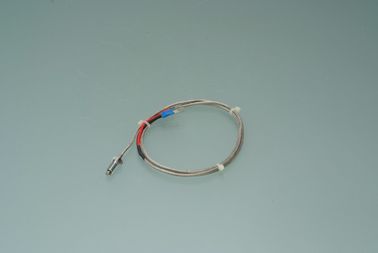

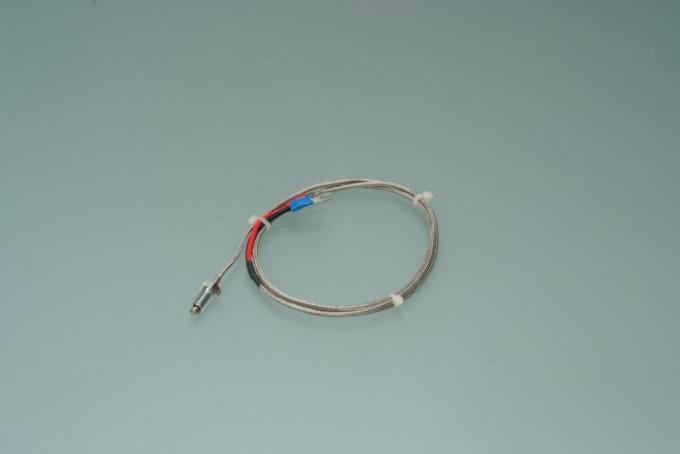

SS304 High Accuracy Thermocouple RTD K type Thermocouple Probe Duplex

Large Image : SS304 High Accuracy Thermocouple RTD K type Thermocouple Probe Duplex

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Standard Export Packing
Delivery Time:	7~20 working days after received your payment
Payment Terms:	T/T, Western Union,Paypel
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Product Name:	Thermocouple Probe	Calibration:	K
Probe Size:	OD 5 X 64 Mm	Wire Length:	3 Meter
Accuracy:	Class I	Probe Material:	SS304
Max.temperature:	900F Or 500C	Protection Material:	Stainless Steel Braided Screen
Highlight:	temperature sensor rtd , temperature sensor rtd pt100

SS304 High Accuracy Thermocouple RTD K type Thermocouple Probe Duplex

1.Specification

Probe material

SS 304

Calibration

Type K

Accuracy

Class I

Junction

Ungrounded , Ground

Wire description

fiberglass insluation and Stainless Steel Braided Screen protection

Termination type

3” split leads and 1/2” Bare Ends,

3” split leads and 1/2” Spade lugs,

Stranded Male Plug,

Stranded Female Jack,

Mini Male Plug,

Mini Female Jack,

Accessories

None,

Bx connector,

Cable clamp

2. Feture

The Adjustable bayonet thermocouple allows for simple and rapid adjustment of the immersion length to each application , which can be adjusted to a specific length and mounted into the process directly ;
The Adjustable bayonet thermocouple are available with a variety of fixing mechanisms ;
With or without stainless steel overbraid or interlocking flexible armour cable;
Wire and tube construction ;
Easily replaceable and interchangeable

3. Application:

Plastics and rubber industry;
Dies for extrusion profiles;
Direct installation into the process;
Packaging industry;
Compression platens;

SS304 High Accuracy Thermocouple RTD K type Thermocouple Probe Duplex 0
