| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | ||
| Highlight: | temperature sensor rtd,temperature sensor rtd pt100 |
||

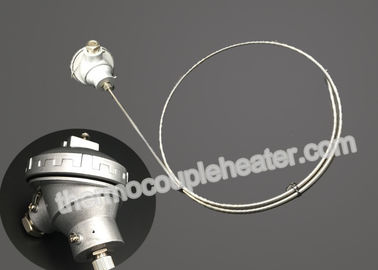

Professional Designed Thermocouple K Type with Industrial flange Sheathed thermocouple
Description:
1) Thermal resistance at ambient temperature for 15-35 ° C, relative humidity is not more than 80%, test voltage for 10-100 - v (dc) electrode and outer casing of the insulation resistance between > 100 m Ω.
2) Thermocouple in the environmental temperature is 20 + 15 ° C, relative humidity is not more than 80%, test voltage for 500 + 50 v (dc) electrode and > 1000 Ω insulation resistance between the outer casing.
3) Thermocouple is manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy.
4) The junction of the thermocouple can be grounded, ungrounded or exposed. The thermocouple junction may be of many different styles, from tube type to a washer configuration. The lead length may vary depending on the distance of the temperature controller from the thermocouple sensor. The metal that the sensor is constructed of determines the type of thermocouple manufactured.
Specification:
Parameter of high temperature thermocouple:
Electrical outlet: M20x1.5, NPT1 / 2
Accuracy class: I, II
Protection: IP65
Even wire diameter: Φ0.5
Pressure: atmospheric .
| Description |
GME Thermocouple
|
|||
|
Temperature element
|
K,E,J,T, B,S,N, PT100,Cu50
|
|||
|
Temperature range
|
-40~1800℃
|
|||
|
Explosion proof grade
|
dIIBT4, iaIICT 6
|
|||
|
Type
|
Assembly, Armored
|
|||
|
Thermocouple’s quantity
|
Single or double (optional)
|
|||
|
Installation type
|
No fixtures device, Fixed thread, Moveable flange, Fixed flange (optional)
|
|||
|
Junction box
|
Splash proof type, Water proof type, Explosion proof type (optional)
|
|||
|
Diameter of Protect tube
|
Φ16mm SS304, Φ20mm SS304, (optional)
|
|||
|
Note: Other technical parameters, please feel free to contact us.
|
||||
1)This series assembly thermocouple can be used for the temperature measuring and control in the erumpent processing of chemical fiber, rubber plastic, food , boiler and other industries.
2) Professional for power station design, can satisfy 300000, 600000 kw generators and auxiliary engine temperature measurement needs.Direct measurement in the process of various production - 200 ° C to 800 ° C range of liquid, steam and gas medium, as well as solid surface temperature.
