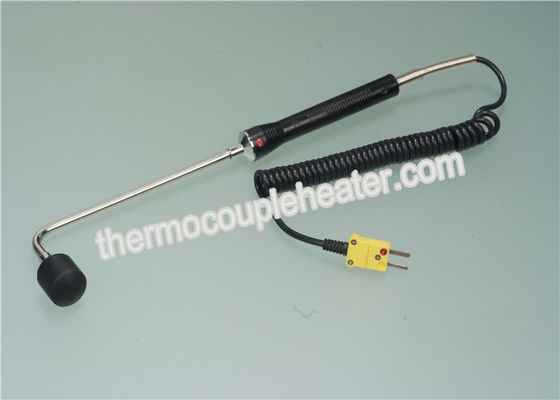

Food Custom made handheld Thermocouple RTD temperature sensors

Food Custom made handheld Thermocouple RTD temperature sensors

Food Custom made handheld Thermocouple RTD temperature sensors

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Packaging Details: Standard Export Packing
Delivery Time: 7-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Application: Food Material: Stainless Steel 304
Accuracy: Class1 Usage: Industrial
Type: Thermocouple Feature: Handheld
Probe Length: 100mm
High Light:

temperature sensor rtd

,

temperature sensor rtd pt100

 Waterproof stainless steel handheld k type thermocouple temperature sensor


Stainless steel sheath and waterproof
Measurement range: -20 to 105 °C
Length of wire: 2 meter or customized
Size of probe: 6mm * 50 mm
Output: 2 wires
Type: NTC 10k±1% 3950
measure environmental temperatures using 1 ADC and this 10k NTC
Resistance to temperature conversion table



Parameter



Type Temperature range °C (continuous) Temperature range °C (short term) Tolerance class one (°C) Tolerance class two (°C)
K 0 to +1100 −180 to +1300 ±1.5 between −40 °C and 375 °C ±2.5 between −40 °C and 333 °C
±0.004×T between 375 °C and 1000 °C ±0.0075×T between 333 °C and 1200 °C
J 0 to +750 −180 to +800 ±1.5 between −40 °C and 375 °C ±2.5 between −40 °C and 333 °C
±0.004×T between 375 °C and 750 °C ±0.0075×T between 333 °C and 750 °C
N 0 to +1100 −270 to +1300 ±1.5 between −40 °C and 375 °C ±2.5 between −40 °C and 333 °C
±0.004×T between 375 °C and 1000 °C ±0.0075×T between 333 °C and 1200 °C
R 0 to +1600 −50 to +1700 ±1.0 between 0 °C and 1100 °C ±1.5 between 0 °C and 600 °C
±[1 + 0.003×(T − 1100)] between 1100 °C and 1600 °C ±0.0025×T between 600 °C and 1600 °C
S 0 to +1600 −50 to +1750 ±1.0 between 0 °C and 1100 °C ±1.5 between 0 °C and 600 °C
±[1 + 0.003×(T − 1100)] between 1100 °C and 1600 °C ±0.0025×T between 600 °C and 1600 °C
B +200 to +1700 0 to +1820 Not Available ±0.0025×T between 600 °C and 1700 °C
T −185 to +300 −250 to +400 ±0.5 between −40 °C and 125 °C ±1.0 between −40 °C and 133 °C
±0.004×T between 125 °C and 350 °C ±0.0075×T between 133 °C and 350 °C
E 0 to +800 −40 to +900 ±1.5 between −40 °C and 375 °C ±2.5 between −40 °C and 333 °C
±0.004×T between 375 °C and 800 °C



Feature



1)Short thermal response time, narrow dynamic deviation.



2)Bendable to fix.



3)Wide measuring range



4)High mechanical strength, good pressure-resisting.
