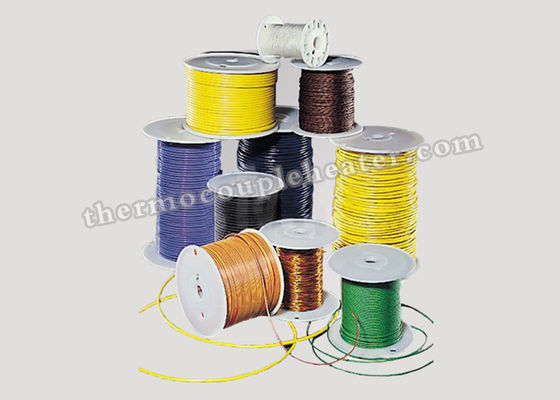

Professional PVC Insulated 16 BWG J Type Thermocouple Extension Cables

PVC Insulated 16 BWG J Type Thermocouple Extension Cable

1. Introduction

Thermocouple extension cables are available in a variety of connector and jacket configurations to make connections between process and instrumentation easy.

Practical for use in connecting between a thermocouple sensor and readout, extension wire comes in as large a variety as our thermocouple wire.

2. Application

Thermocouple extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouples’ reference junction.

Commonly there are four types of insulation material for extension cable: fiberglass, , PVC and silicone. Stainless steel braided and tinned brass braided is also commonly used in the cable.

Customers from different areas possibly require different color style for the cable, all color standard are available upon request.

Thermocouple Cable is the wire which has the similar thermoelectric properties with thermocouple in a certain temperature range.

The thermocouple total potential value only relate to the temperature of hot end and reference junction without influence of intermediate temperature. So compensation could extend the heat to the meter terminal instead of expensive compensation wire.

3. Competitive Advantage

• Our measurement accuracy of thermocouple cable can reach Class 1
• 10,000 meters without joints
• The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
