Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Certification: | ISO9001/ CE |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or as per your request |
| Delivery Time: | 7~20 working days |
| Payment Terms: | L/C, T/T,PAYPAL |
| Supply Ability: | 100000 pcs per Month |
| Product Name: | Bolt Type RTD Pt100 Temperature Sensor With Wire | Application: | Temperature Sensor For Industry |
|---|---|---|---|
| Max.temperature: | -200 To 250°C | Probe Material: | 316SS |
| High Light: | resistance temperature detecto,temperature sensor rtd pt100 |
||

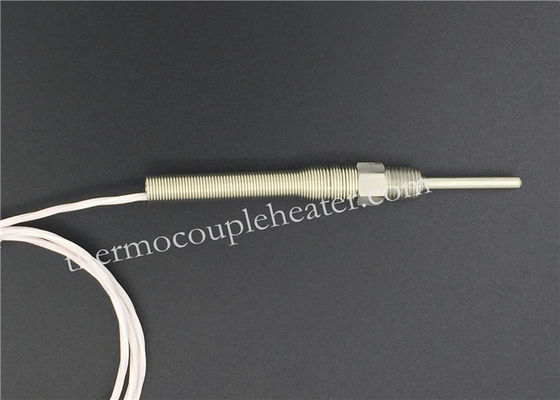

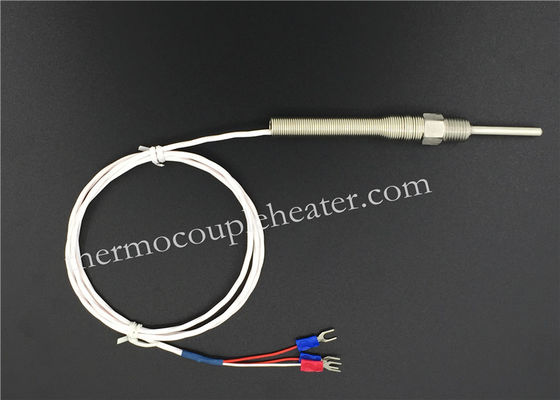

Bolt Type RTD Pt100 Temperature Sensor With Wire
Product Description:
1. Probe Material: 316SS
2. Probe size:dia 5mm *length30mm
3. Wire material:1m wire
4. Circuit type:2-wire
5. Class:A
6. Temperature :-200~200C
Specification:
|
Probe Outside Diameter |
3mm, 4mm, 5mm,6mm |
|
RTD Element Type |
1xPt100 2xPt100 1xPt1000 2xPt1000 |
|
RTD wire connection |
2 wire configuration 3 wire configuration 4 wire configuration
|
|
Wire Description |
24 Gage Stranded Stainless Steel Braid Flexible Armor Cable 24 Gage Stranded Fiberglass Cable 24 Gage Stranded Cable |
|
Termination type |
90mm split leads and Bare Ends. 90mm split leads and spade lugs. Standard Male Plug (2 & 3 wire configuration only) Standard Female Jack(2 & 3 wire configuration only) Mini Male Plug(2 & 3 wire configuration only) Mini Female Jack(2 & 3 wire configuration only) |
Feature:
Temperature range -328 °F (-200 °C) thru +1562 °F (+850 °C)
Standard temperature rated for use up to 1112 °F (600 °C)
Rigid and bendable sheaths
® coated probes available
Elements 100 or 1000 ohm, Class A (0.06%) or B (0.12%)
Curve European 100 ohms @ 0 °C= 0.00385 ohms/ohm/degree C
Curve American 100 ohms @ 0 °C =0.00392 ohms/ohm/degree C
Thin-film or wire-wound, Platinum, Nickel or Copper
Sheath Diameter: 3mm, 4mm, 5mm,6mm
Sheath length: there is no upper limit on sheath length. The minimum practical length is 2 inches.
Lead configurations: 2, 3 & 4-wire, single + dual element
Quick disconnects standard & custom
Enclosures: standard and explosion proof
Transmitters: Isolated 4-20 mA, DIN rail and head mount, standard & explosion proof.
Thermowells
Application:
Bolt type RTD Pt100 temperature sensor with Wire has been designed to be used in below area,
Automotive, engine test cells
Co-Energy, solar, coal-gasification, fossil fuel, & nuclear
Fuel cells
Food & Beverage
Ovens & Chillers
Industrial processes
Medical
Pharmaceuticals
Chemical & Petrochemical
R&D
