Hot Runner Stainless Steel Heating Coil Metal Mesh For Plastic Injection Molds

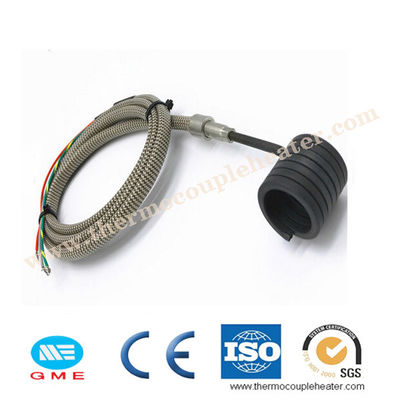

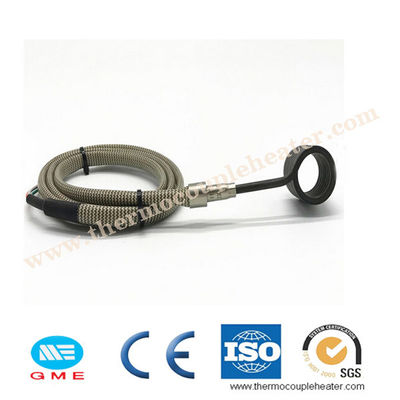

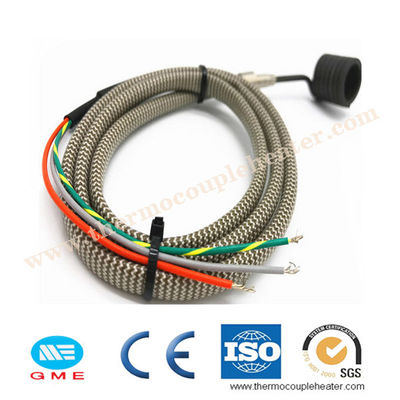

Large Image : Hot Runner Stainless Steel Heating Coil Metal Mesh For Plastic Injection Molds

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	380V, 240V	Sheath Material:	Stainless Steel Or Nickel
Cross Section:	3.0x3.0,3.3x3.3,4.50 * 4.50 Mm	Style:	Straight Or Coil
Lead Wire:	, Fiberglass , Metal Mesh	Coiling Scheme:	Tangential, Radial Exits, Axial
Material:	Brass And Stainless Steel	Application:	Manifolds Hot Runner Injection
Color:	Silver Or Fully Black
Highlight:	electric resistance heater , coil heater with thermocouple

Professional Stainless steel Hot runner coil spring air heaters for plastic injection molds

Description:

1) Coil heater is one kind of tubular electric heating elements. These components are mainly used in aerospace, petrochemical, rubber and plastics industries, and the like, it can be used to heat still or flowing air, water, oil,nitrate, alkali and other kinds of liquid.

2) coil heater can also be used to melt light metal or to heat metal moulds. It has advantages such as simple structure, long heat lifetime, high thermal efficiency, reliable and safe operation and so on.

3) Spring-type electric heating coil, heat stable, durable, long life and reasonable price, can be customized according to customer requirements for various models of the electric heating elements.

Specification:

Technical Specification of Hot Runner Coil Heater:

1. Maximum Sheath Temperature: 700°C

2. Voltage: 110V~380V
3. Wattage: 115W-2000W
4. Sectional area: 3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3
5. Available sheath: nylon,metal braided,fiberglass ,silicone rubber, kevlar

Sectional area	3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3
Minimum ID	8mm
Sheath Material	SS304,SS310
Insulation Material	High Pure MgO
Resistance Wire	Cr20Ni80
Maximum Sheath Temperature	700°C
Die Electrical Strength	800V A/C
Insulation	> 5 M W
Dimensional Tolerance	Coil I.D + 0.1 to 0.2mm// Coil Length + 1mm
Wattage Tolerance	+ 10% (+ 5% Available Upon Request)
Voltage	12V~380V
Wattage	70W~1000W
Build-in thermocouple power	without or with J/K thermocouple
Sheath's length	500/1000/1200/1500/2000mm
Available sheath	nylon,metal braided,fiberglass ,silicone rubber, kevlar
Sheath's color	standard is black,other color is also available
Connector	without or with 5 pin xlr,4 pin min xlr connector
Connector' color	silver or fully black

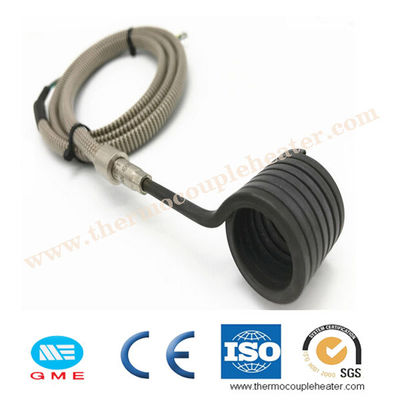

Hot Runner Stainless Steel Heating Coil Metal Mesh For Plastic Injection Molds 0

Application:

1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection molds.
5. Injection & Blow Molding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
