| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 380V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 3.5x3.5,3.0x3.0,3.3x3.3 | Style: | Straight Or Coil |
| Lead Wire: | Copper, , Fiberglass Silicon | Coiling Scheme: | Radial Exits, Axial, Tangential, |
| Material: | SS304,SS321,SS316 | Application: | Manifolds Hot Runner Injection |
| High Light: | electric resistance heater,Electric Coil Heaters |
||

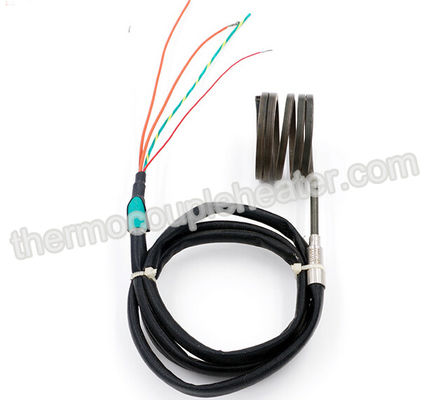

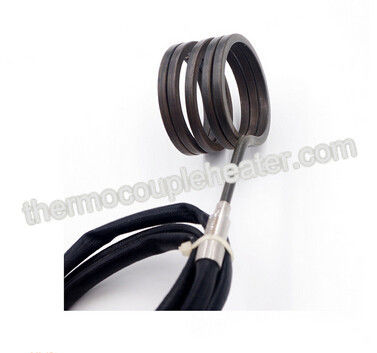

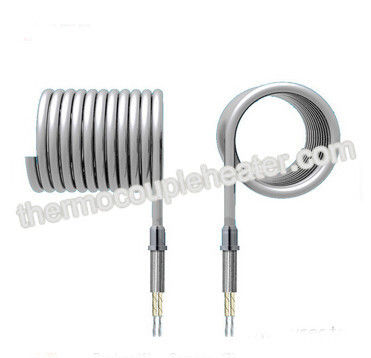

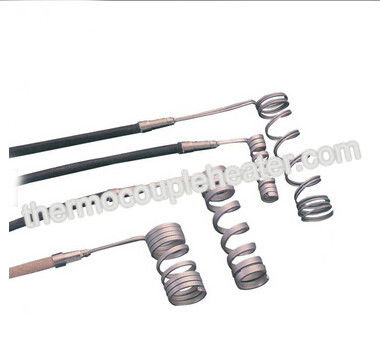

Heat Exchange Spring Hot Runner System Coil Heater With J Type Thermocouple
Description:
1) For the plastic industry for injection parts for high temperature heating, the product is made of closed stainless steel, effectively prevent leakage and damage, and the temperature is absolutely ideal for the use of units, with long working life.Coil performance advantages is in flexible installation, fast heat transfer, good insulation, production specifications from the size of the restrictions and other advantages.
2) Hot Runner Coil Heater are widely used in hot-runner molds,blow molding,extrusion and hot nozzles.The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.
.
Specification:
Basic parameters:
Section (diameter) Flat type: 2.0 * 4.0 / 2.2 * 4.0 / 2.5 * 4.0 / 2.2 * 4.2
Square: 3.0 * 3.0 / 3.3 * 3.3 / 3.6 * 3.6 / 4.0 * 4.0
Round: double pipe 1.8 / double tube 2.2 single tube 3.0 / single tube 3.6
Temperature control device: built-in thermocouple optional K, J, E and other models
| Sheath Material | Cr Ni-Steel |
| Insulation Material | MgO |
| Resistance Wire | Ni Cr 80-20 |
| Maximum Sheath Temperature | 700°C |
| Die Electrical Strength | 800V A/C |
| Insulation | >5 M W |
| Thermocouple | J type (Standard) or K type |
| Length Tolerance (Straight) | 5% |
| Wattage Tolerance | +/- 10% (+/- 5% Available Upon Request) |
| Resistance Tolerance | +/- 10% (+/- 5% Available Upon Request) |
| Unheated Length | 35mm (Standard) |
| Dimensional Tolerance | Coil I.D +/- 0.1 to 0.2mm |
| Coil Length+/- 1mm |
Application:
Plastic Die Applications;
Blow Molding Machine;
Extrusion;
Hot Runner Systems;
Injection Molding;
Thermoforming
