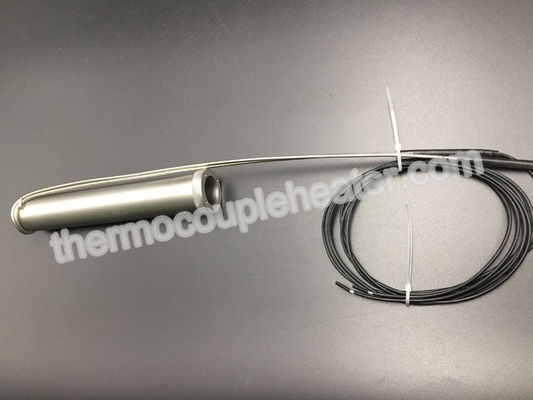

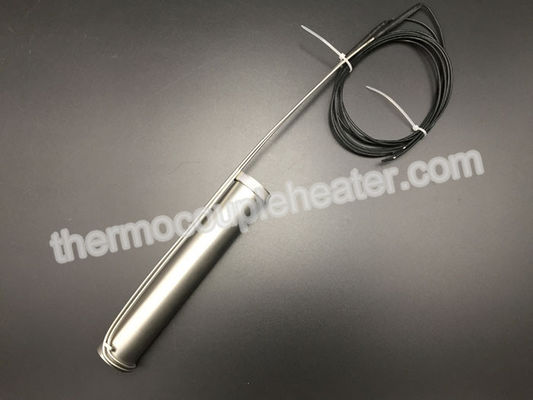

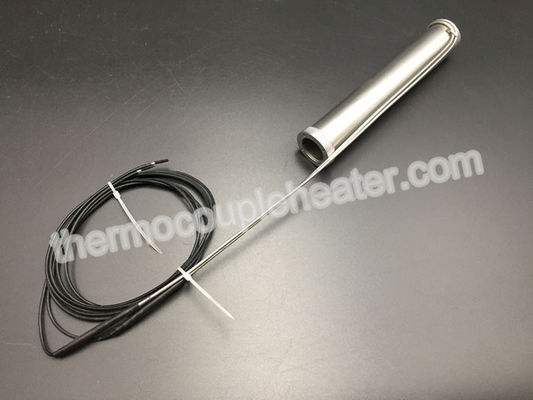

Hotlock Electric Coil Heaters With Cap And PTFE Insulated Leads

China Hotlock Electric Coil Heaters With Cap And PTFE Insulated Leads supplier
Hotlock Electric Coil Heaters With Cap And PTFE Insulated Leads supplier Hotlock Electric Coil Heaters With Cap And PTFE Insulated Leads supplier Hotlock Electric Coil Heaters With Cap And PTFE Insulated Leads supplier

Large Image :  Hotlock Electric Coil Heaters With Cap And PTFE Insulated Leads

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: Coil Heater

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Exported Case Packing
Delivery Time: 20,000pcs per month
Payment Terms: D/P, L/C, Western Union, T/T, Paypal
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Coil Heater Application: Hot Runner
Insulated Material: Comressed MgO Power(W): 200-3000W
Watt Density: 6.5 W / CM 2 Warranty: 1 Year
Moistureproof: IP 65 Lead Wire Length: 1000 Mm Or Customized
High Light:

electric resistance heater

,

Electric Coil Heaters

Hotlock Electric Coil Heaters With Cap And PTFE Insulated Leads




1. Brief Introduction



Our coil heater made of Germany heater wire ,the united states high-purity magnesium oxide materials and strict process technology,there are various sections and sizes,square ,round and flat cross sections and sizes available ,provide high –performance electric heater for heating hot runner mold and other fileds. Heaters maximum temperature up to 700C.The integration of temperature thermocouple for precise temperature control ,can provide K J E themocuple ,blasting and black surface treatment ,also provides bright surface.



The materials used direct the heat inward toward the nozzle resulting in a very efficient heater with even heat distribution. The tightly toleranced I.D allows a slip fit with no clamping required.  The Armored Nozzle Coil Heater are constructed with a Stainless Steel inner sleeve and a Stainless Steel outer sleeve. The heater is tightly sandwiched between these sleeves eliminating the heat transfer problems associated with other dual sleeved designs.





2. Specification



Sheath material Chrome Nickel Steel
Insulation material High purity MgO
Heating element NiCr 80:20
Thermocouple 'J' type (Fe K) 'K' type (Cr Al) grounded or ungrounded
Connection Wires Stranded Nickel wires with PTFE coating
Power Tolerance (+5% ,-10%) (smaller tolerances on request )
Insulation Resistance ≥ 500 MΩ at 500V AC
Current Leakage ≤ 0.5 mA at 253V AC
Sheath Temperature 750°C
Dielectric strength (high voltage test ) Min. 1000V



Technical Drawing



Hotlock Electric Coil Heaters With Cap And PTFE Insulated Leads





3. Feature

  • Maximum heat transfer due to more contact area
  • Advanced Thermal Engineering
  • Designed for even heat profile
  • Precision fit on Hot Runner Nozzles & Manifolds
  • CE Certified
  • Available with built in Thermocouple
  • Standard sizes available with various cross section
  • Various Watt Density options available.
  • Robust Design with Choice of Terminal Exits
  • Highly Non-corrosive

4. Application

  • Injection & Blow Moulding Machine Nozzles.
  • PET prefrom & Thin wall container Moulds.
  • Hot Runner Manifolds.
  • Hot Runner Nozzles & Bushings.
  • Hot runner Injection moulds

5. Packing



Hotlock Electric Coil Heaters With Cap And PTFE Insulated Leads
