Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Diameter Range: | 2.6mm-30mm |
|---|---|---|---|
| Voltage: | 12V/24V/110V/220V/230V... | Sheath Material: | Stainless Steel Ss304/316/310 |
| Style: | Straight Or Coil | Lead Wire: | Copper, , Fiberglass Silicon |
| Thermocouple Type: | J Or K Type | Terminal: | Axial, Radial & Tangential |
| Warranty: | One Year | Working Temperature: | 300°C To 700°C |
| High Light: | electric resistance heater,Electric Coil Heaters |
||

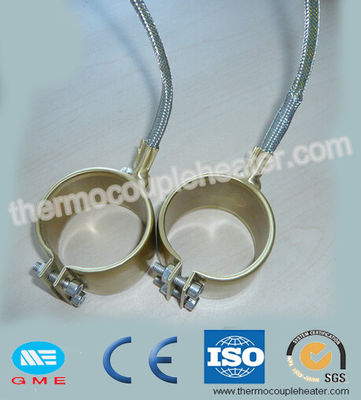

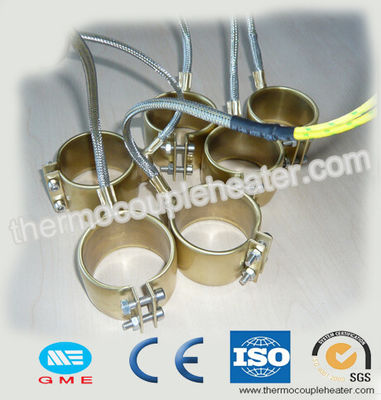

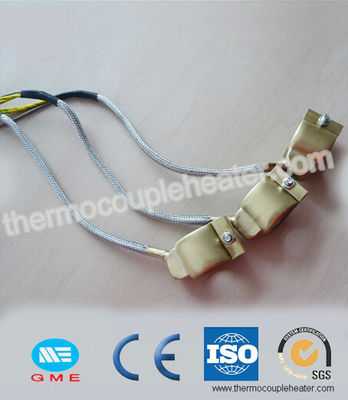

Brass nozzle high quality extruder band mica heater with stainless steel braided wire
Description:
1) Sealed brass nozzle heater with hole is very sturdy and the high watt density per square centimeter provides the required working temperature with a fast and safe means.During manufacturing process, the heaters are subjected to very high pressure that gives them high insulation, excellent thermal exchange, lack of internal voids, perfect smooth contact area for optimum and uniform heat transfer to every point of nozzle.
2) Mica band heaters are widely used on operations involving heating of cylindrical surface and are
manufactured in a full range of standard construction variations, physical dimensions, electrical rating,
and a complete arrangement of screw terminals and lead terminations.
3) These standard band heater variations and terminations do not represent the extent of our capabilities. GME’s engineering staff, with many years experience in heat processing and temperature control applications, can assist you in designing the right band heater for your specific applications.
Specification:
1).Material:
Heating element: nickel chrome wire or FeCr ;
Sheath material: stainless steel316/304/321/310/201;
Insulation material: mica;
2). Min Height: 25mm
3).Watt Densities: 3w/cm2(stainless steel), 4.5w/cm2(brass), 6.5w/cm2(ceramic insulation)
4).Standard voltages: 120, 240, 480, or 600 volts
5). Estimated life in excess of 10,000 hour
6).Operating temperature up maximum of 500 ℃
Please specify the following when ordering:
Diameter (mm) and length (mm) of heaters
Type of leads and length (mm)
Voltage and wattage
Content of the stamping if needed
Order quantity
Delivery date
Application:
| Plastic injection molding machines | Plastic extruders |
| Oil reclamation equipments | Food and candy extruders |
| Drum heating | Extrusion dies |
| Holding tanks | Blow molding machines |
| Vending machines | Barrels and heads |
| Food service warming | Autoclaves and sterilizers |
| Metallurgical analyzers | Fluidized Beds |
| Hot runner molds |
Pulp and paper processing equipment |
