Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, S | Input Signal: | Pt100,pt1000,Cu50,Cu100 |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Material: | SS304,SS316,SS310 |
| Types Of Terminal Box: | Anti-spray/water-proof | Connection: | Thread |
| Highlight: | resistance temperature detecto,temperature sensor rtd pt100 |
||

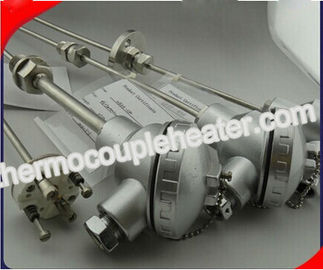

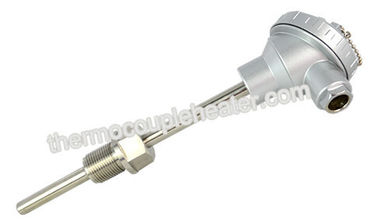

Industrial Explosion proof Sensor Connection & thermocouple head K temperature sensor
Description:
1) Explosion-proof thermocouple (resistor) is a type of temperature sensor.There are often various
inflammable and explosive chemical gas and vapor on production site in chemical plants.
2) It will be extremely unsafe if common thermocouples are used, which is quite easy to cause explosion of environmental gas. Therefore, the explosion-prevention thermocouples have to be used under such
circumstances.
Specification:
1, Application: pt100 temperature transmitterRTD,converting RTD(pt100,pt1000, Cu50,Cu100) input signals into a scalable 4 to 20 mA
2, Installation:Directly installed to RTD Form B.
Equipped with special card can realize DIN35 guide rail installation.
3, Probe material: SS304,SS316,SS310
| Input | |
| Measured variable | Temperature |
| Measurement accuracy | 0.2% |
| Output | |
| Output signal | 4~20mA |
| Load resistance | RL≤(Ue-7.5)/0.021A |
| Signal on alarm | IH = 20.5mA ; IL= 3.8mA |
| Input Sensor break,output current | 22mA |
| Sensor open-circuit,output current | 22mA |
| Sampling period | rating value 0.25S |
| Protection | Reverse polarity protection |
| Essential parameter | |
| Supply voltage | 7.5~45V,d.c. |
| Temperature drift | 0.01% F.S./ °C |
| Damping time | < 5S |
|
Insulation strength (among Input and output) |
1500V,a.c.;1min |
|
Insulation resistance (among Input and output) |
≥100MΩ |
| Minimum range | 50°C |
| Weight | 32g |
| Rated operating condition - Environment temperature | |
| Storage temperature | -50°C~+105°C |
| Operating temperature | -40°C~+85°C |
| Relative humidity | ≤85% |
| Reference operating conditions |
23°C |
Application:
Pipeline inspection,
petrochemical,
industrial equipment,
food machinery,
high-temperature furnace and boiler,
special alloy equipment, metallurgy, hydropower,thermal power, laboratorial platform, glass
Payment Terms and Shipping:
Shipping:
1.About 15 working days after receiving payment(based on actual quantity).
2.Tracking No.will be sent to you after delivery,and we will track the goods for you until you receive it.
Payment:
1.We accept T/T or Western Union, Paypal before production.
2.If buyers have any problems about payment,pls contact us ASAP.
