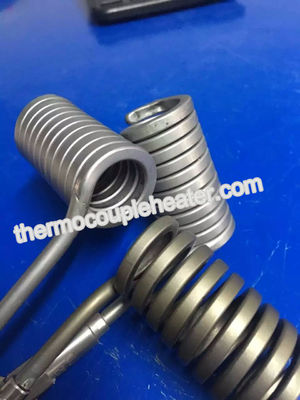

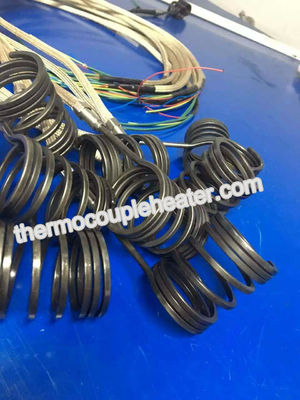

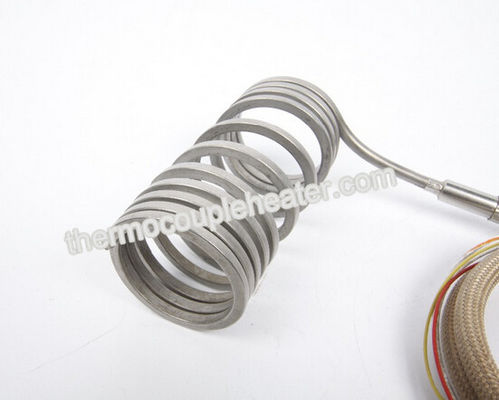

Industrial Electric Injection Machine Spring Hot Runner Electric Resistance Heater

Industrial Electric Injection Machine Spring Hot Runner Electric Resistance Heater

    • Industrial Electric Injection Machine Spring Hot Runner Electric Resistance Heater
    • Industrial Electric Injection Machine Spring Hot Runner Electric Resistance Heater
    • Industrial Electric Injection Machine Spring Hot Runner Electric Resistance Heater
  • Industrial Electric Injection Machine Spring Hot Runner Electric Resistance Heater

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 380V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 3.5x3.5,3.0x3.0,3.3x3.3 Style: Straight Or Coil
    Lead Wire: Copper, , Fiberglass Silicon Coiling Scheme: Tangential, Radial Exits, Axial
    Material: Brass And Stainless Steel Application: Manifolds Hot Runner Injection
    Highlight:

    electric resistance heater

    ,

    Electric Coil Heaters

    2.2x4.2mm nozzle spiral coil heater for hot runner systerm with metal mesh lead wire



    Description:



    1) Length of coil heater within 20-3000mm is mainly used for hot runner mold,as well as other precision heating system.Spring heating ring external using high quality Ni-Cr steel tube,the internal use of high purity magnesium oxide,high temperature resistance wire,and first-class manufacturing technology.



    2) The wire is after the annealed,with flxibility can bent into an arc or circle heating.Its high working temperature,fast heating,uniform heating precision,long service life,can be automatically controlled area,high thermal conduction,while internal heating material damage,external careuses.

    .

    Specification:



    Cross Section for Coil Spring Heater

    • 3.0 * 3.0, 3.30 * 3.30, 4.50 * 4.50 mm
    • 4.20 * 2.20, 4.50 * 2.50, 3.20 * 1.80, 1.30 * 2.30 mm
    • 3.30, 1.80, 1.60 mm

    1.Use condiction:environment temperature:-20~+60C,Relative temperature<95%

    2.Leakage current: <0.5MA

    3.Insulation resistance: ≥5MO

    4.Groud resistance: <0.1O

    5.Voltage resistance: no electric breakdown for 1 minute under 1500V

    6.Temperature endurance: 100-1200 ℃



    Sheath of coil heater
    SUS304
    Insulation of coil heater
    Compacted magnesium Oxide
    Heating conductor
    NiCr8020
    Thermocouple
    K type, J type (optional)
    Leads
    Stainless steel braided wire, PTFE wire, glass fiber wire ( On demand)
    Voltage
    24V to 415V
    Temperature resistance
    Max 800 cent degree



    Industrial Electric Injection Machine Spring Hot Runner Electric Resistance Heater



    Application:

    • Caustic Cyanide used in gold processing
    • Hot water storage
    • Asphalt Wax
    • Caustic solutions Detergent
    • Sterilizing equipment6.Heating oils
    • Plastic processing&packaging machinery
    • Ovens&dryers
    • Dies&Tools
    • Water& Oil heating appliances
    • Vending machines
    • Kitchen equipments
    • Medical equipments
