Fine and Durable Screw Thermocouple RTD , resistance temperature sensor With Spring

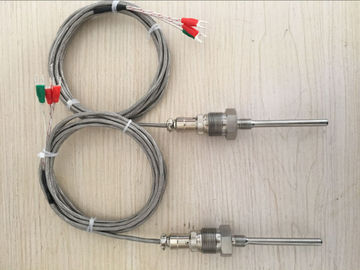

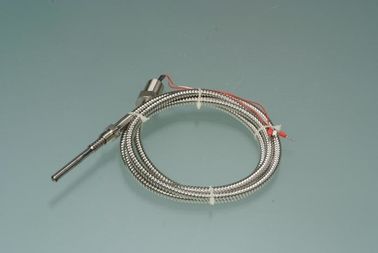

Large Image : Fine and Durable Screw Thermocouple RTD , resistance temperature sensor With Spring

Product Details:

Place of Origin:	Wenzhou, CHINA
Certification:	ISO9001/ CE

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	Carton or as per your request
Delivery Time:	7~20 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Usage:	Industrial	Theory:	Temperature Sensor
Temperature Range:	-200-1800℃	Calibration:	Type J K T
Accuracy:	Class I	Sheath Material:	304SS ,310SS,316SS,Inconel 600
Highlight:	temperature sensor rtd , resistance temperature detecto

Fine and Durable Screw Thermocouple RTD , resistance temperature sensor With Spring

Product Description

Thermocouples are manufactured in many different configurations for multitude of applications.They normally work as a temperature sensor. They are used together with temperature displays and controls to detect and control the temperature of gas, liquid or solid surface. The working range is from -200ºC to 800ºC.

1.Diameter and length:Can be customized as customer's requirements(16mm or 20mm)

2.Terminal box:water-proof type,splash-proof type,anti-explosion type,connector type,import type.

3.Fixed device : flange/none/screw

4.Temperature Range:-200~1800 centigrade .

5.Terminal blocks: terminals box

Model	Graduation mark	temperature measured	Mounting& Fixing
WRK	K	0-1300°C	1.without Fixing Device 2.Threaded Connector 3.Movable Flange 4.Fixed Flange 5.Elbow Tube Connection 6.Threaded Cone Connection 7.Straight Tube Connection 8.Fixed Threaded Tube Connection 9.Movable Threaded Tube Connection
WRE	E	0-700°C
WRJ	J	0-600°C
WRT	T	0-400°C
WRS	S	0-1600°C
WRR	R	0-1600°C
WRB	B	0-1800°C
WRM	N	0-1100°C

Fine and Durable Screw Thermocouple RTD , resistance temperature sensor With Spring 0

Fine and Durable Screw Thermocouple RTD , resistance temperature sensor With Spring 1
