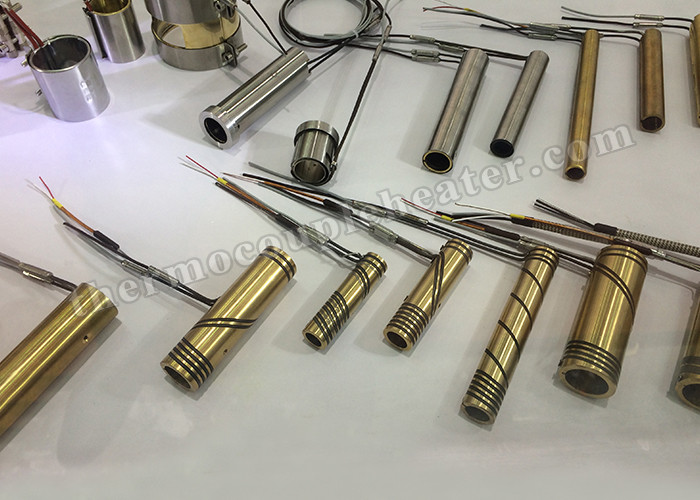

Hot Runner Coil Heaters With Copper Sheath For Injection Moulding

Hot Runner Coil Heaters With Copper Sheath For Injection Moulding

Hot Runner Coil Heaters With Copper Sheath For Injection Moulding

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 7-15 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 10,000 pcs per month
Contact Now
Detailed Product Description
Name: Coil Heater With Sheath Application: Hot Runner
Material: Copper Lead Wire Length: 1000mm Or Customize
Warranty: 1 Year Insulated Material: Comressed MgO
Moistureproof: IP65 Cross Section: 2.2 X 4.2mm,3.2 X 1.8mm,OD 1.8mm Etc
Thermocouple: Type J , K Tube Length: 200 - 2500 Mm
Form: Straight Or Coiled Type: Tangential, Radial Exits, Axial
Wire: Braided Copper Tinned Conductor Etc Wire Insulation: Teflon, Fiberglass, Silicon Etc.
Protection Sleeves: Fiberglass, Silicon, Braided Metal Screen Etc





Hot Runner Coil Heaters With Copper Sheath For Injection Moulding



1. Introduction



Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.

Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.



2. Characteristics



1) Very good performance of the heating uniformity in the heating area.

2) The inside insulated cover, same as the German GC.

3) The moisture-proof is IP65

4) High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.



3. Application



hot runner system

plastic industry

packaging machinery

medical equipment

casting process

other electric heating industry



4. Parameter



Spring coil heater (H series) 3.0x3.0
3.3x3.3
4.0x2.0
4.2x2.2
4.5x2.7
Φ3.0 Φ4.0 Φ5.0 3.5x3.5
4.0x4.0
5.0x5.0
Voltage 220V,230V,240V
Power tolerance 115W-200W +/-10%
Power tolerance 201W-2000W +5%-10%
Out jacket length 30mm~280mm
Diameter of the inner sleeve/wrapped diameter 10mm~42mm
Unheating length 45mm
Max power density 9W/cm²
Heating Length tolerance +/-0.05mm
Unheating length tolerance +/-2.5%
Tolerance ID d ≤20mm Without inner sleeve:-0.15mm
With inner sleeve:0.05mm~0.10mm
Tolerance ID d 20mm~30mm Without inner sleeve:-0.20mm
With inner sleeve:0.05mm~0.10mm
Tolerance ID d ≥30mm Without inner sleeve:-0.25mm
With inner sleeve:0.05mm~0.10mm
Tolerance cross section +/-0.15mm +/-0.20mm
Thermocouple K,J,E None
Material 304,321,316
Maximum working temperature 650℃
Die electrical strength 800V 1000V



5. Transportation
