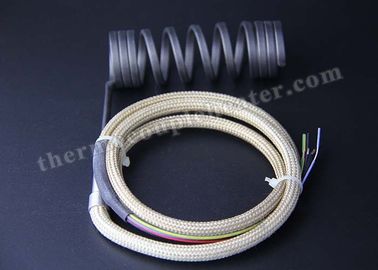

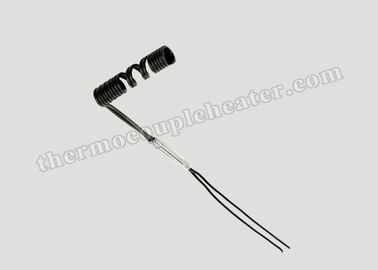

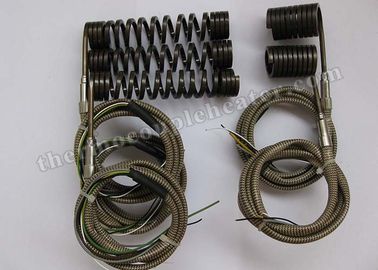

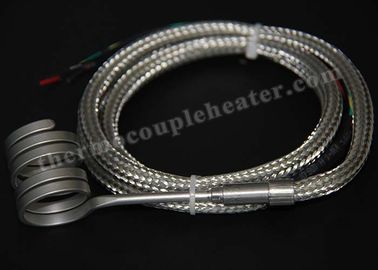

Hot Runner Spring Coil Heaters High insulation Stainless Steel 304 / 316

Hot Runner Spring Coil Heaters High insulation Stainless Steel 304 / 316

    • Hot Runner Spring Coil Heaters High insulation Stainless Steel 304 / 316
    • Hot Runner Spring Coil Heaters High insulation Stainless Steel 304 / 316
    • Hot Runner Spring Coil Heaters High insulation Stainless Steel 304 / 316
    • Hot Runner Spring Coil Heaters High insulation Stainless Steel 304 / 316
  • Hot Runner Spring Coil Heaters High insulation Stainless Steel 304 / 316

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: -

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Price: negotiation
    Packaging Details: Export Carton Box
    Delivery Time: 7-15 working days
    Payment Terms: L/C, D/P, T/T, Western Union, Paypal
    Supply Ability: 20,000pcs per month
    Detailed Product Description
    Product Name: Spring Coil Heater Thermocouple: Type J, K
    Application: Injection Mold Hot Runner Material: Stainless Steel 304, 316
    Moisture Proof: IP 65 Insulated Material: Comressed MgO
    Warranty: 1 Year Lead Wire Length: 1000 Mm Or Customized

    Hot Runner Spring Coil Heater with Thermocouple



    1. Spring Coil Heater Brief Introduction



    Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high-purity magnesium

    oxide material, and strict process technology. There are various  cross section and size

    for choice, such as square, round and flat, provide high performance electric heater for heating hot runner

    mold and other fields.



    Heater maximum temperature up to 650 ºC, the integration of temperature

     thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening

    surface treatment, also can provide bright surface.



    2. Spring Coil Heater Characteristics



    a. Very good performance of the heating uniformity in the heating area.

    b. The inside insulated cover, same as the German GC.

    c. High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special

    requirement if customers need.

    d. The moisture-proof can be IP65, suitable for working in bad condition.



    3. Spring Coil Heater Parameter.

    Hot Runner Spring Coil Heaters High insulation Stainless Steel 304 / 316

    • Standard Configuration
    • Material :304
    • Unheated length(L1):45mm
    • Connector(cold side)(DxU):
    • Square cross-section:Ф7.6x26mm
    • Round flat cross-section:Φ7.5x29mm,Φ3.5x40mm
    • Power lines,grounding wire length(L):1000mm
    • Jacket:Silicone fiberglass sheathing establishment,black and others
    • Thermocouple:J tpye
    • Compensating lead wire length(L):1000mm
    • Surface treatment:sandblasting,black, polish

    Spring coil heater (H series)

    3.0x3.0
    3.3x3.3
    4.0x2.0
    4.2x2.2
    4.5x2.7

    Φ3.0

    Φ4.0

    Φ5.0

    3.5x3.5
    4.0x4.0

    5.0x5.0

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~280mm

    Diameter of the inner sleeve/wrapped diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d 20mm~30mm

    Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d ≥30mm

    Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance cross section

    +/-0.15mm

    +/-0.20mm

    Thermocouple

    K,J,E

    None

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    800V

    1000V



    4. Spring Coil Heater Application



    This Heating Coil is widely applied for hot runner system, plastic industry, packaging machinery, medical

    equipment, casting process,other electric heating industry, etc..
